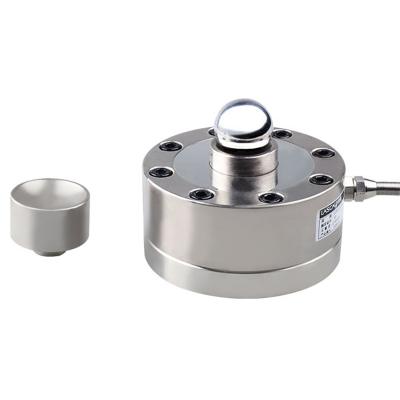

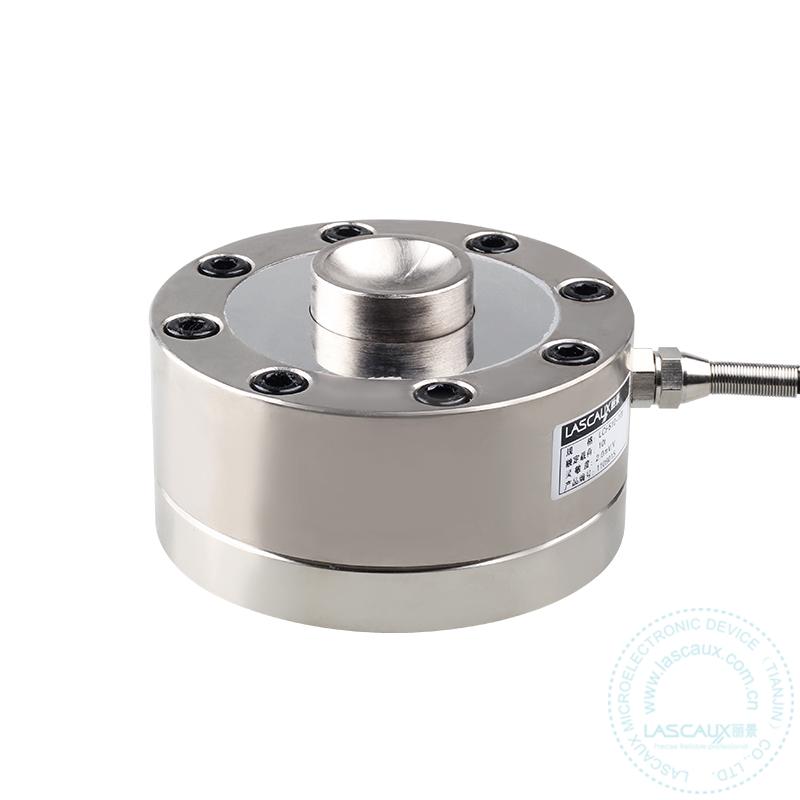

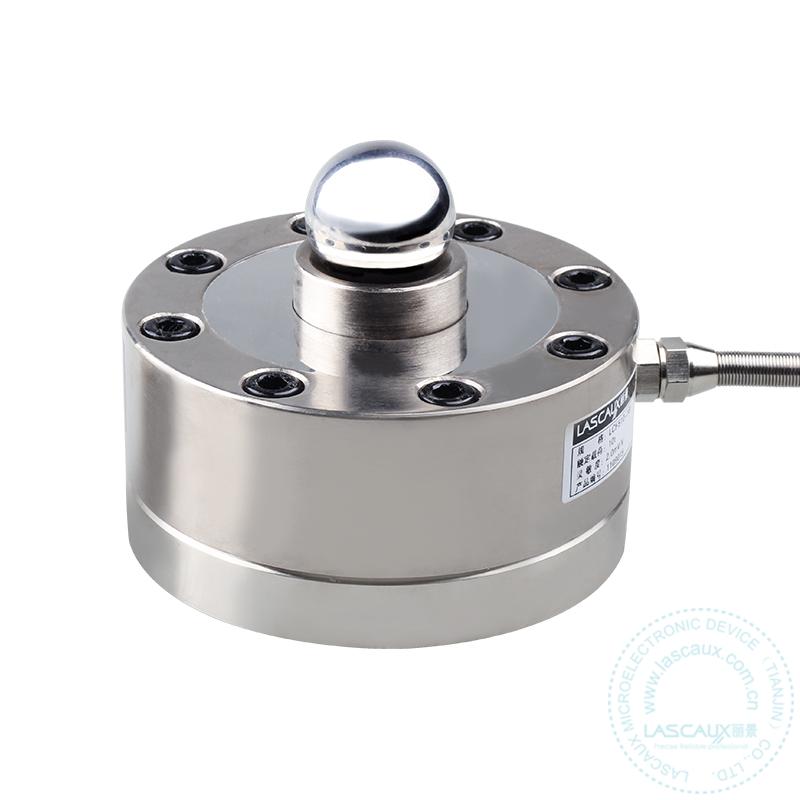

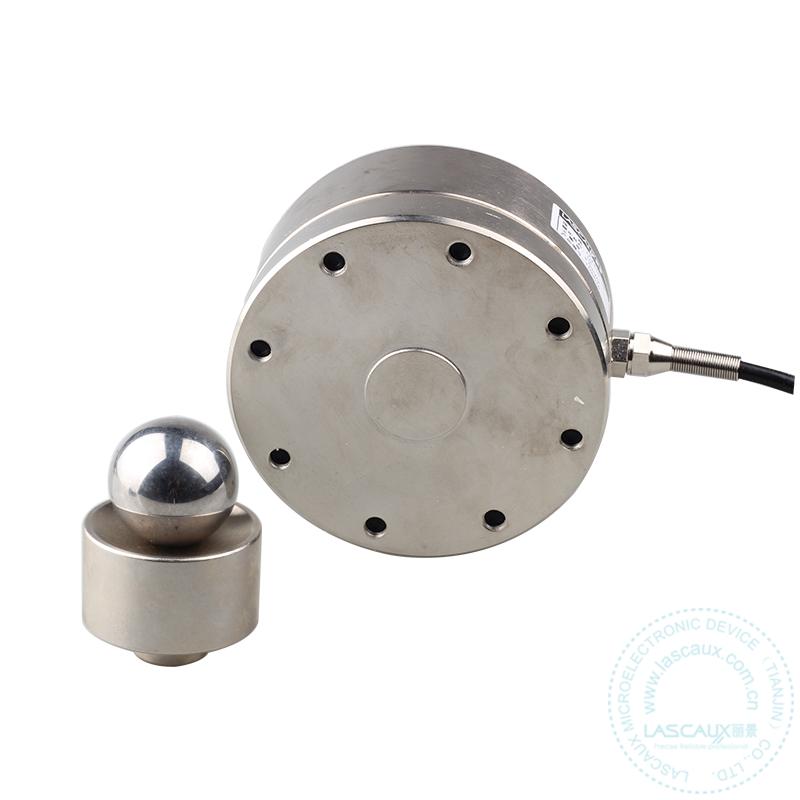

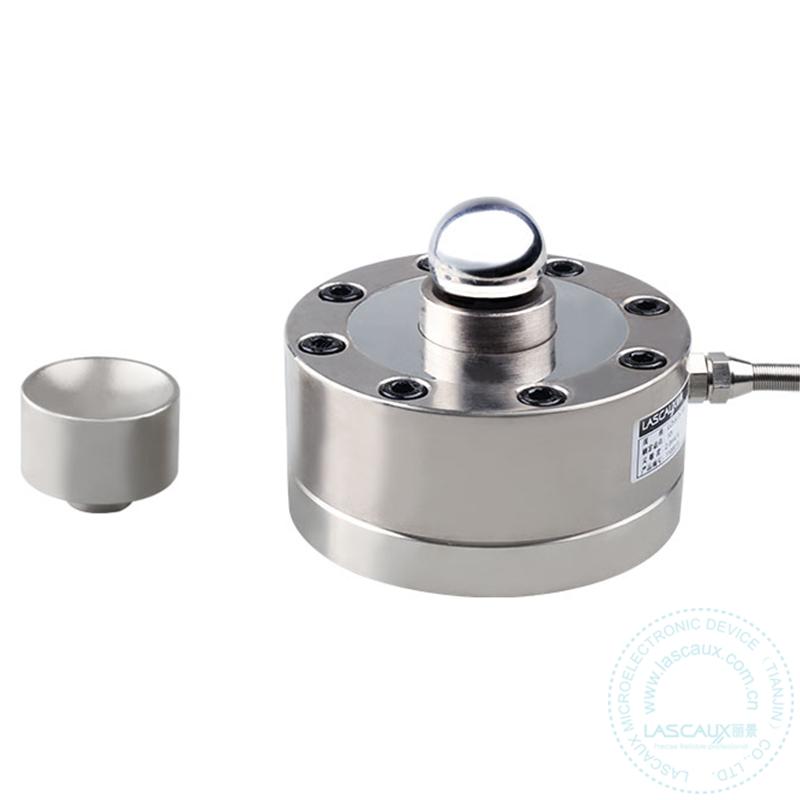

LCF510 Pancake Load Cells

Be suitable for the fields of Truck scales, Rail scales, Ground scales, Heavy capacity Platform scales, hopper and tank weighing, Testing machines.

本店价：

👈Consult customer service for a quote 3 have been sold|0 evaluation

BrandEnter the LIBIRINTH Brand Pavilion

Capacity

10t

20t

50t

LCF510 Pancake Load Cell

Description:

Model: LCF510

Datasheet:

LCF510 Data

Features:

1. Capacities (t):5 to 50

2. Compact structure, easy to install

3. Low profile, spherical designing

4. The capacity of anti-deviated load is very strong

5. High comprehensive precision, high stability

6. High quality alloy steel with nickel plating

7. Compression load cell

Applications:

Be suitable for the fields of Truck scales, Rail scales, Ground scales, Heavy capacity Platform scales, hopper and tank weighing, Testing machines.

Specifications：

Rated Load	t	5,10,25,50
Rated Output	mV/V	2.0±0.0050
Zero Balance	%R.O.	±1
Comprehensive Error	%R.O.	±0.03
Non-linearity	%R.O.	±0.03
Hysteresis	%R.O.	±0.03
Repeatability	%R.O.	±0.02
Creep/30 minutes	%R.O.	±0.03
Compensated Temp. Range	‌℃	-10~+40
Operating Temp. Range	℃	-20~+70
Temp. effect/10℃ on output	%R.O./10 ℃	±0.02
Temp. effect/10℃ on zero	%R.O./10 ℃	±0.02
Recommended Excitation Voltage	VDC	10
Maximum Excitation Voltage	VDC	15
Input impedance	Ω	770±10
Output impedance	Ω	700±5
Insulation resistance	MΩ	≥5000（50VDC）
Safe Overload	%R.C.	150
Ultimate Overload	%R.C.	300
Material		Alloy Steel
Degree of protection		IP66
The length of the cable	m	6m(5t, 10t),13m(25t, 50t)
Wiring code	Ex:	Red:＋ Black:–
Wiring code	Sig:	Green:＋ White:–

Specification

Product name :	LCF510 Pancake Load Cells
Product brand :	LIBIRINTH
Warranty:	12 months
Rated Load:	5t，10t，20t，50t
Output Type:	Analog millivolt voltage signal output：mV/V
Rated Output:	2.0±0.0050mV/V
Comprehensive Error:	0.03%
Material:	Alloy Steel
The lengh of the cable:	5t-10t：6m，25t-50t-13m
Input Impedance:	770±10Ω
Output Impedance:	700±5Ω
Recommended Excitation Voltage:	5-12v
