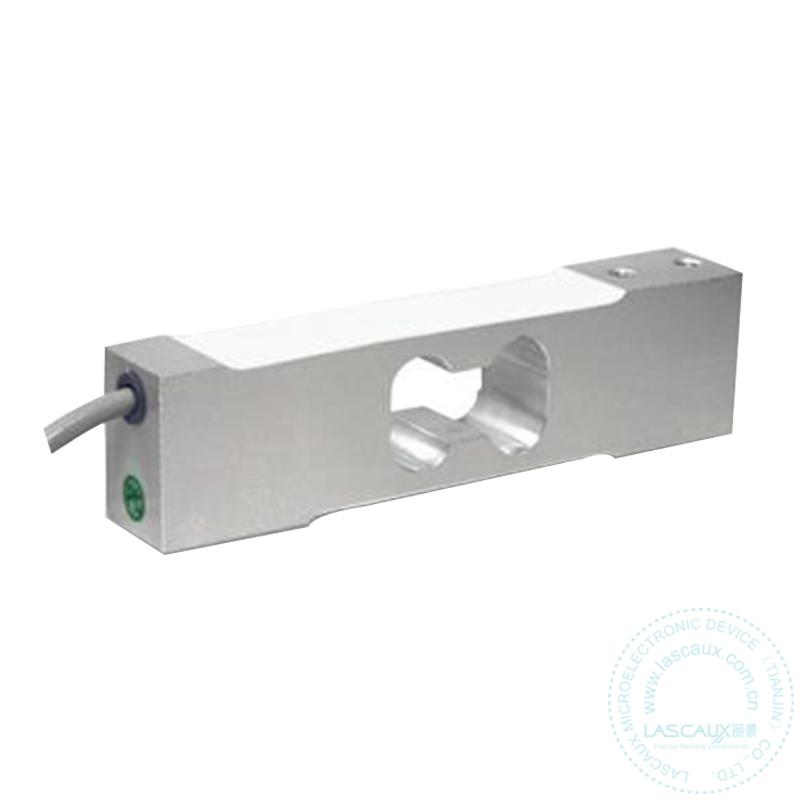

SPG SERIES SINGLE POINT LOAD CELLS, C3 CLASS

Dimensions (mm)

Wiring Code
Colour	Function
YELLOW	SHIELD
WHITE	OUTPUT +
GREEN	SENSE +
BLUE	INPUT +
RED	OUTPUT -
GREY	SENSE -
BLACK	INPUT -

Load cells for off center loads, suitable for example to build CE-M approved scales with a single load cell; maximum platform dimensions of 600x600 mm.

CAPACITIES (kg): 10, 15, 20, 30, 50, 100, 200.

OIML R60. C3 precision class.

Aluminium alloy. IP67 protection.

MAIN FEATURES

C3 PRECISION CLASS
OFF CENTER LOAD COMPENSATED
ALUMINIUM ALLOY CONSTRUCTION
IP67 PROTECTION
MAX. CAPACITIES FROM 10 TO 200 kg
FOR PLATFORMS WITH DIMENSIONS UP TO 600 X 600 mm
SHIELDED CONNECTION CABLE
OIML CERTIFICATE AVAILABLE UPON REQUEST
TEST CERTIFICATE AVAILABLE UPON REQUEST

TECHNICAL FEATURES

Minimum load cell verification interval:
Vmin = EMax / 10.000-15.000
Maximum number of verification intervals: nLC = 3000
Sensitivity: 2mV/V ± 10%
Temperature effect on zero:
from ±0,0093% F.S./10K to ±0,0140% F.S./10K
Temperature effect on Full Span:
0,011% F.S./10K (-10°C/+20°C) 0,017% F.S./10K (+20°C/+40°C)
Compensated Temperature Range: -10°C/+40°C
Operating Temperature Range: -10°C/+50°C
Maximum excitation voltage without damage: 15 Vdc
Input Resistance: 300..500 Ohm
Output Resistance: 300..500 Ohm
Zero Balance: 0 ± 0,12 mV/V (at 100 V)
Insulation Resistance: >2000 MOhm
Mechanical limit load in service: 150% F.S.
Destructive load: 300% F.S.
Deflection at nominal load <0,5mm
6-wire shielded cable, 3m long, 4,7mm diameter

ATEX Version

The CCATEX certificate makes the load cell suitable for use in hazardous areas with protection methods according to:
ATEX II 1G Ex ia IIC T6 (Ta -20÷+40°C) TX (Ta -20÷+65°C) Ga
ATEX II 1D Ex ta IIIC TX°C (Ta -20÷+40°C) TX°C (Ta -20÷+65°C) Da IP65.
The certificate includes the manual and the ATEX CE conformity declaration (available in EN, DE, FR, and IT).
IMPORTANT: the certificate refers to the single load cell. For systems with more load cells, it is necessary to order one certificate for each load cell.

Product name :	Dini Argeo SPG SERIES SINGLE POINT LOAD CELLS, C3 CLASS
Product brand :	DINIARGEO
Warranty:	12个月
额定载荷:	10kg,15kg,20kg,30kg,50kg,100kg,200kg
精度等级:	C3
Output Type:	模拟量毫伏值电压信号输出：mV/V
额定输出:	2mV/V±10%
综合误差:	0.03%F.S.
Creep (30 min.):	0.01%F.S.
最小检定分度值:	Vmin=EMax/15.000
最大检定分度数:	nLC=3000
最大激励电压:	15VDC
Input impedance:	300..500
Output impedance:	300..500
zero return:	0±0.1%F.S.
Safe Overload:	150%F.S.
Ultimate overload:	300%F.S.
Degree of protection:	IP67
Elastic element material:	铝合金
The lengh of the cable:	3m
Cable Type:	6芯屏蔽电缆，直径4.7mm
