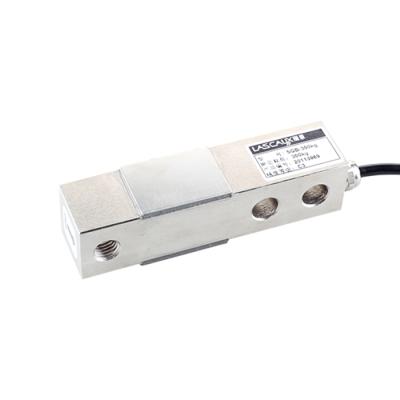

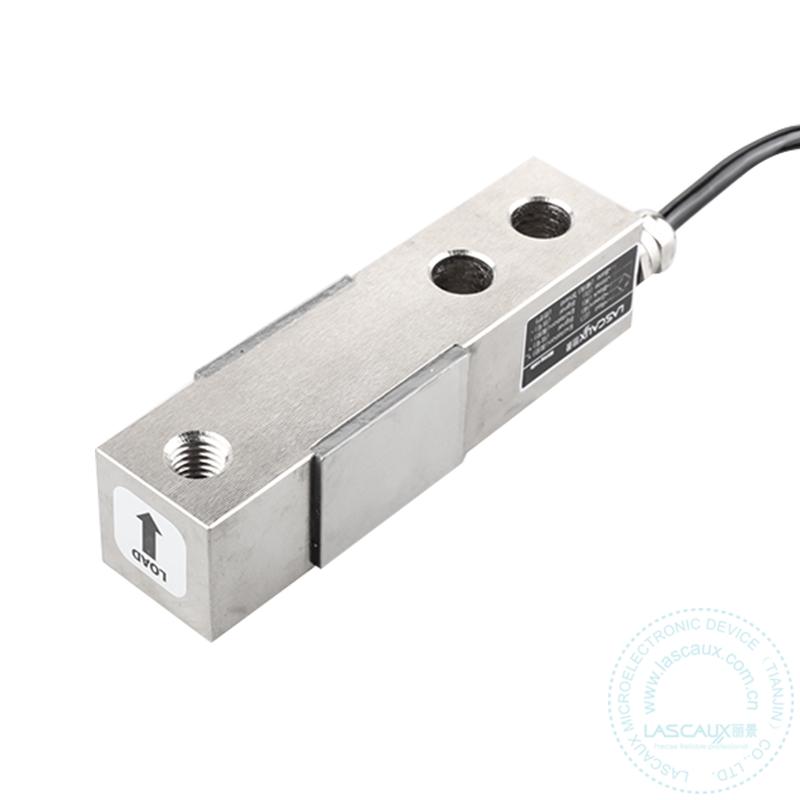

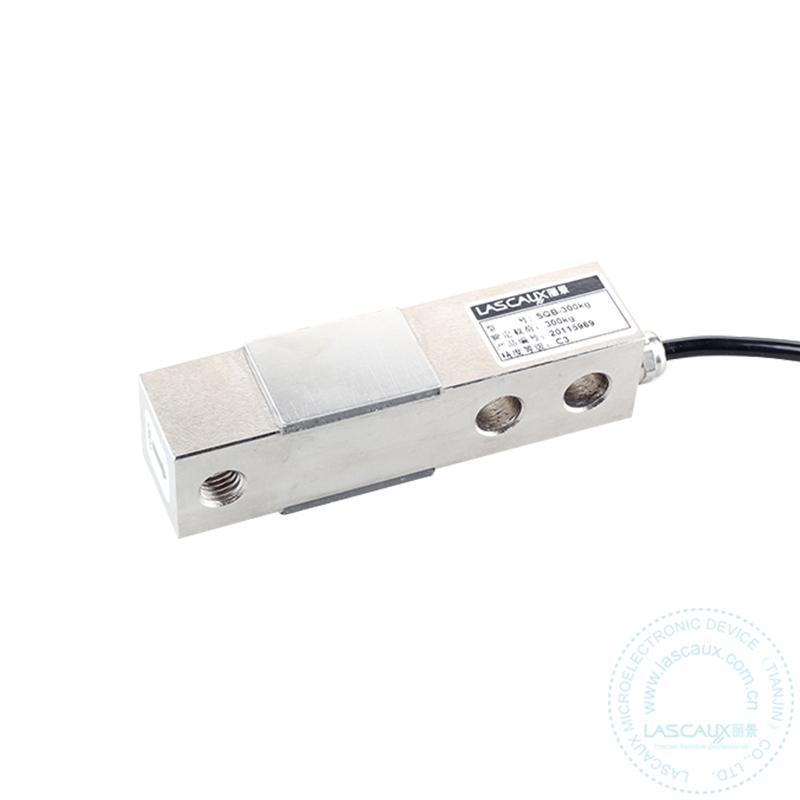

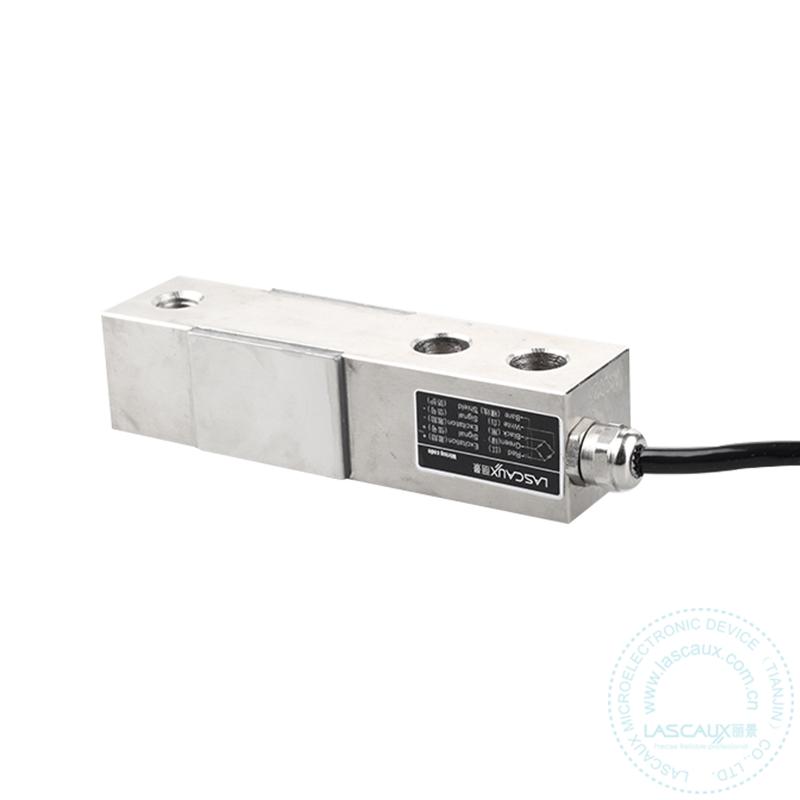

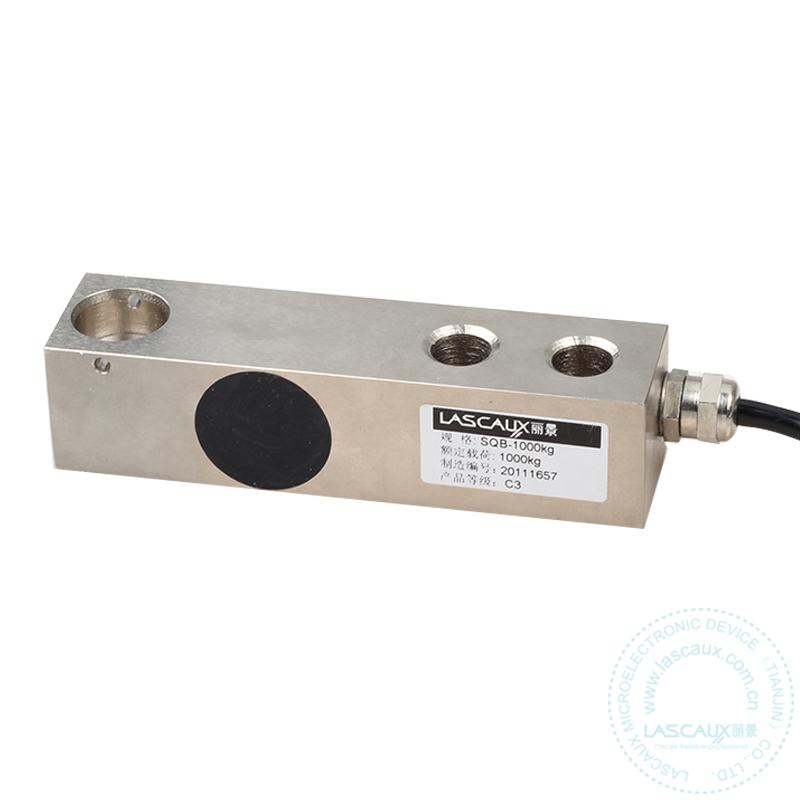

SQB Single Ended Shear Beam Load Cell Description： Model: SQB
Features: 1. Capacities (t): 0.1 to 10 2. Compact structure, easy to install 3. High comprehensive precision, high stability 4. High quality alloy steel with nickel plating 5. Degree of protection reaches to IP67 6. Module installing
Applications: Be suitable for the fields of Hopper and tank weighing, belt scales, and other Chemical, Industries of Foods Pharmaceuticals, which has huge important on weighing and control.
Specifications:
|
| Product name : | SQB Single Ended Shear Beam Load Cell |
| Product brand : | LIBIRINTH |
| Custom-Made: | 是 |
| Ex Marking: | Exia IIC T4 Ga |
| Certificate NO.: | CE18.2372 |
| Warranty: | 12个月 |
| Rated Load: | 0.1t，0.3t，0.5t，1t，2t，3t，5t，7.5t，10t |
| Output Type: | 模拟量毫伏值电压信号输出：mV/V |
| Rated Output: | 2.0±0.0050mV/V |
| Comprehensive Error: | 0.02% |
| Non-linearity: | 0.02% |
| Hysteresis: | 0.02% |
| Repeatability: | 0.02% |
| Material: | 合金钢 |
| The lengh of the cable: | 0.1t-2t：3m，3t-5t：5m，7.5t-10t：6.5m |
| Input Impedance: | 380±10Ω |
| Output Impedance: | 350±5Ω |
| Recommended Excitation Voltage: | 5-12v |
| Tightening Torque: | 0.1t-2t：98N·m，3t-5t：275N·m，7.5t-10t：750N·m |
