DT70 Digital Indicator

本店价：

👈Consult customer service for a quote 3 have been sold|0 evaluation

Communication

RS485

RS232

Analog

4-20mA

0-10v

0-5v

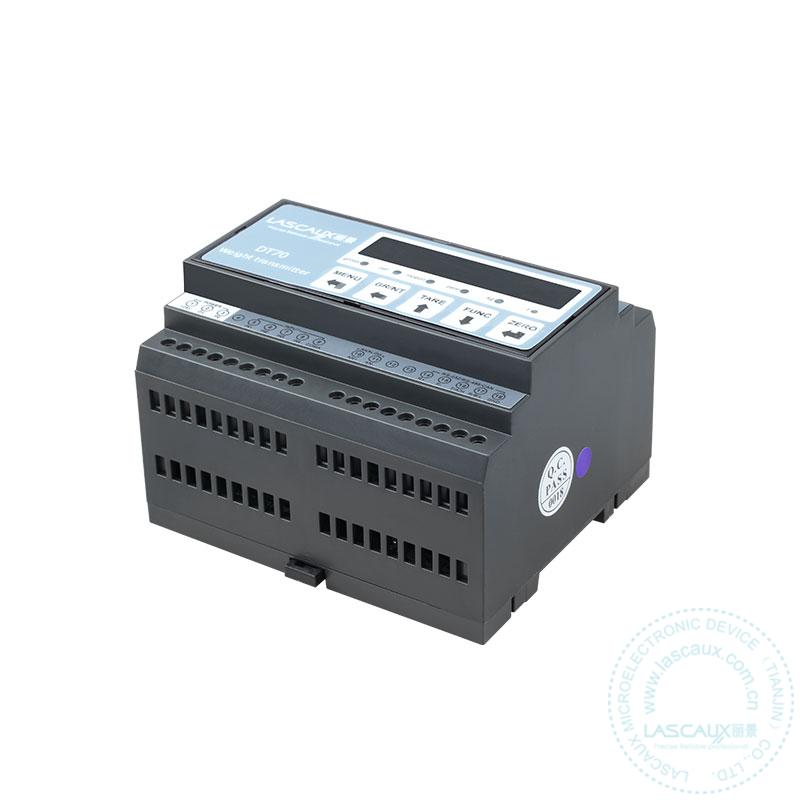

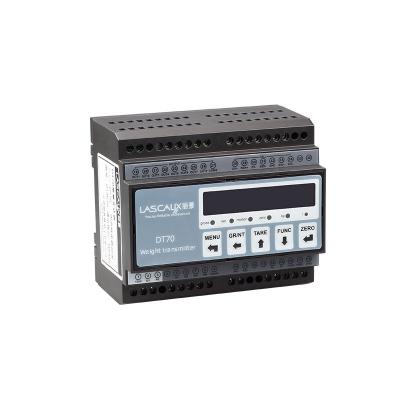

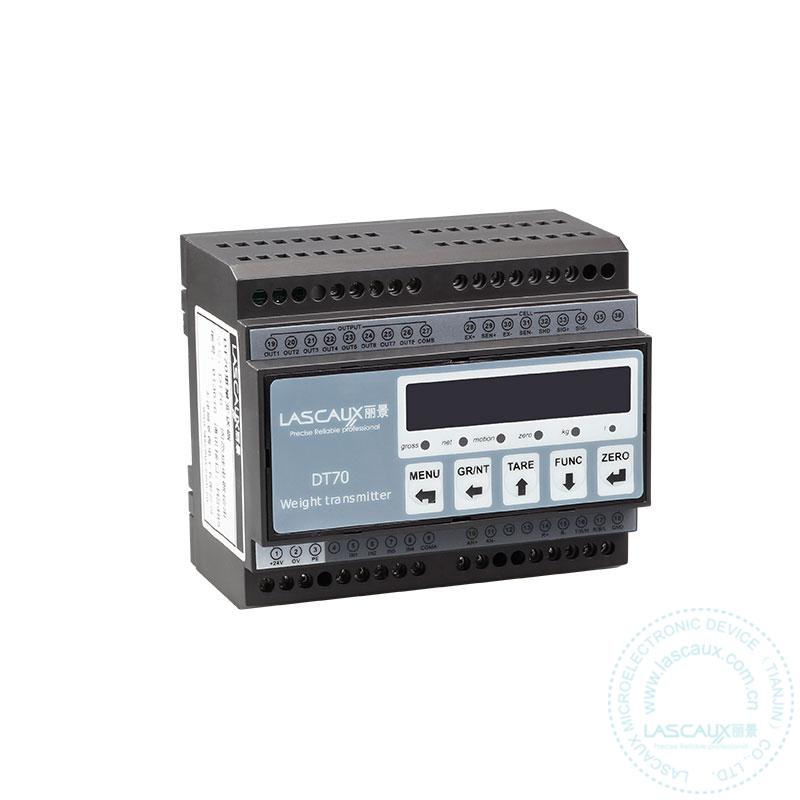

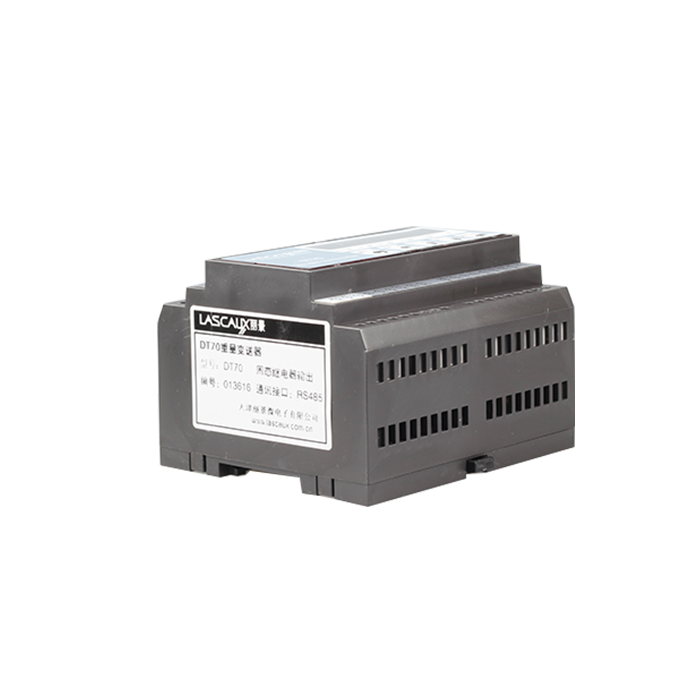

DT70 Weighing Indicator/Transmitter

Model: DT70

Features:

1. Lower temperature drift;

2. 6-bit LED;

3. Digital/material calibration optional;

4. Key-press/host computer as drive software;

5. Communication interface: RS232/485(Alternative), Optional Modbus protocol;

6. Optional: profibus-DP communication board/CAN interface (alternative);

7. Analog output of 4~20mA、0~5V、0~10V;

8. 4-ch optical isolating switch inputs could be respectively used for conversion among tare, zero, net and gross;

9. 4-ch relay isolating outputs could be respectively used for Hi-hi limit, Hi limit, Low limit and Low-low limit.

Specifications：

Power supply	DC24V(18v-30v)
Working temp.	-5℃-45℃(23℉-117℉)
Display range	100-900,000
Output sensitivity	0.5µV/d-200µV/d
Non-linear Error	≤0.005﹪of F.S
Sample rate	Max. 200 times/s
Sensor excitation	DC 10V ±5%
Consumption power	Max. 6W
Humidity	90% relative humidity （no condensation)
Zero voltage adjustable	0.05mV-15mV
Temp. coefficient	≤(0.0008% of the reading+0.3division)/℃
Sampling method	Delta-sigma
Internal resolution	1/16,000,000
Max.display division	50,000d

Product name :	DT70 Digital Indicator
Product brand :	LIBIRINTH
Warranty:	12 month
Powe Supply:	DC24V±5%
Installation:	DIN35 Installation
Display range:	100-900,000
Working:	-5℃~40℃
Output range:	0.5µV/d-200µV/d
Nonlinear deviation:	≤0.005﹪of F.S
Sample rate:	Max.200times/s
Communication and analog quantities:	RS485;RS232;4-20mA,0-10v,0-5v Optional
Sensor exciation:	DC10V±5%
Consumption power:	MAX6W
Humidity:	≤90% relative hunidity(no condensation)
Zero voltage adjustable:	0.05mV-15mV
Sampling method:	Σ-△
Internal Resolution:	1/16,000,000
Max.Display division:	50,000d
