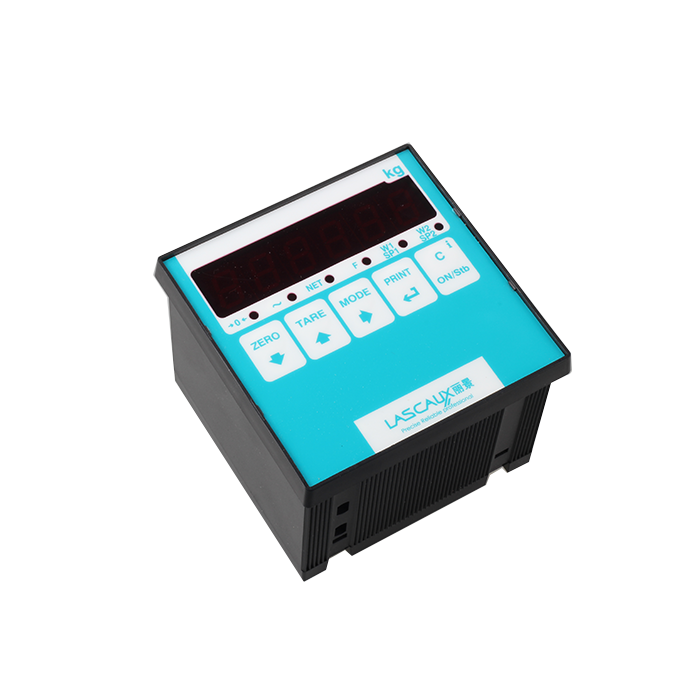

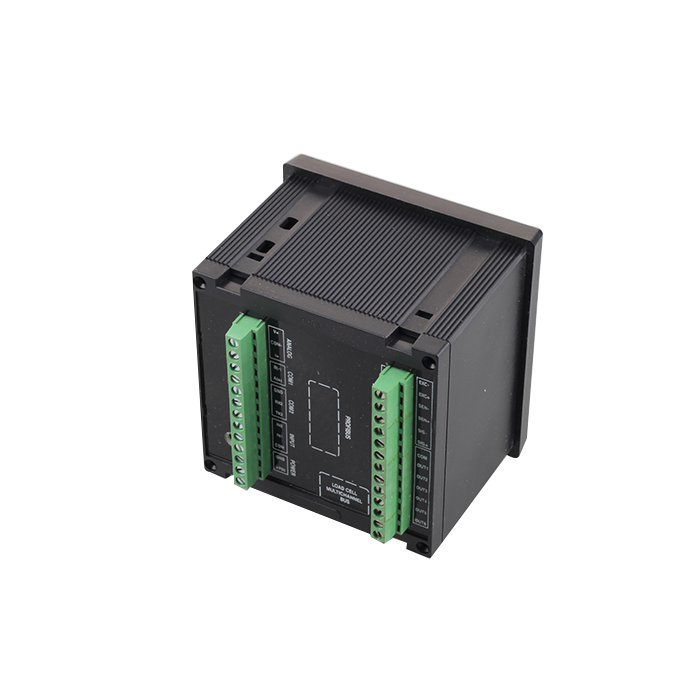

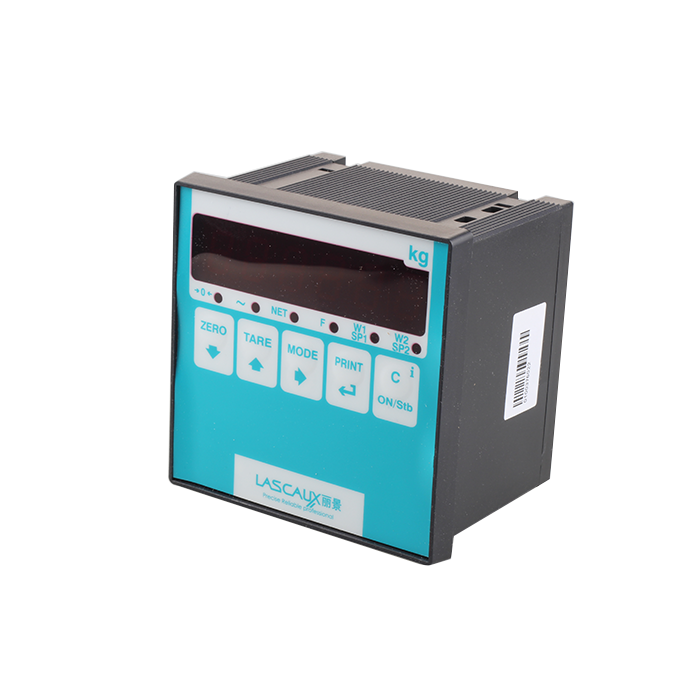

DT85 Weighing Indicator/Transmitter
Model: DT85
Features: 1. Small volume, unique design, easy operation 2. Be suitable for resistance strain sensors, force transducers 3. Cabinet installation and multifunction 4. It can be used as a 4 independent or non-independent channels 5. Many interfaces make it suitable for any automation system
Specifications：
|
| Product name : | DT85 Digital Indicator |
| Product brand : | LIBIRINTH |
| Warranty: | 12 month |
| Powe Supply: | DC12-24V;90mA/24V |
| Installation: | Panel Installation |
| Working: | -10℃~40℃ |
| display screen: | 6Bit Height 10mm Character |
| STATUS: | 6-Bit LED |
| Input/Output inteface: | 2 Input/2 Output |
| Sample rate: | Max.200times/s |
| Communication and analog quantities: | RS485;RS232;4-20mA,0-10v,0-5v Optional |
| Sensor exciation: | DC5V±5% |
| Consumption power: | 185mA/12V；90mA/24V（Unconnected Load Cell） |
