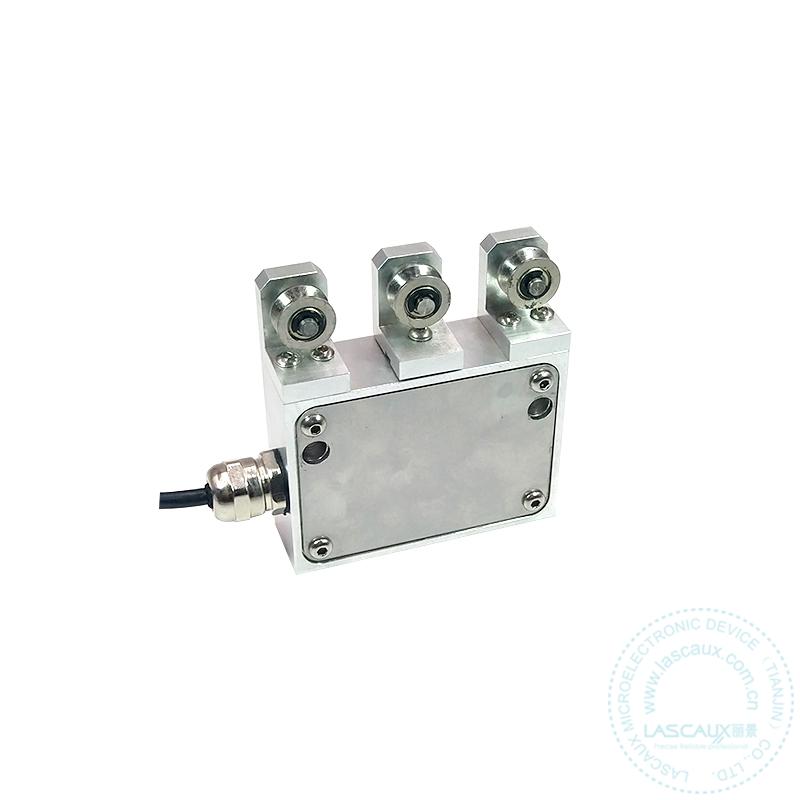

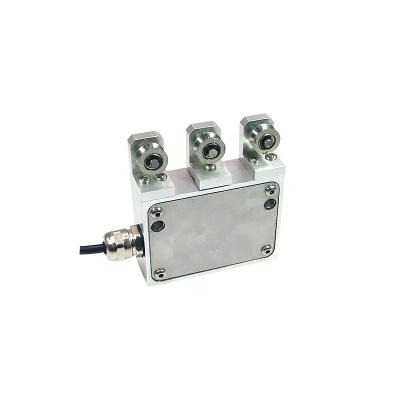

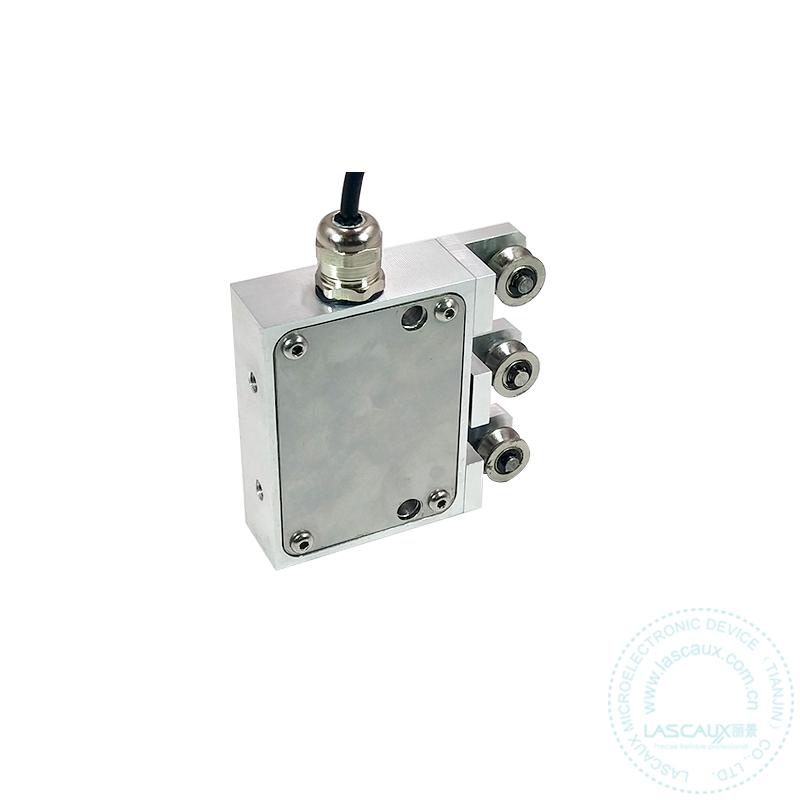

TS Tension Sensor

Be suitable for on-line tension measurement, such as rope, fiber, electric wires, metal wire and other similar products.

本店价：

👈Consult customer service for a quote 0 have been sold|0 evaluation

Capacity

0.5kg

1kg

2kg

3kg

TS张力传感器

Tension Sensor

Description:

Model: TS

Data sheet

Features:

1. Capacities (kg): 0.5 to 3

2. Resistance strain measurement methods

3. Compact structure, save the space

4. Three-roller measuring structure can realize the real-time monitoring of dynamic tension

5. It can arrange in parallel, forming a tension detection array

Applications:

Be suitable for on-line tension measurement, such as rope, fiber, electric wires, metal wire and other similar products.

Specifications:

Rated Load	kg	0.5,1,2,3
Rated Output	mV/V	1
Zero Balance	%R.O.	±1
Comprehensive Error	%R.O.	±0.3
Repeatability	%R.O.	±0.1
Non-linearity	%R.O.	±0.3
Compensated Temp. Range	‌℃	-10~+40
Operating Temp. Range	℃	-20~+70
Temp. effect/10℃ on output	%R.O./10 ℃	±0.02
Temp. effect/10℃ on zero	%R.O./10 ℃	±0.02
Recommended Excitation Voltage	VDC	5-12
Maximum Excitation Voltage	VDC	15
Input impedance	Ω	350±5
Output impedance	Ω	350±3
Insulation resistance	MΩ	≥5000（50VDC）
Safe Overload	%R.C.	150
Ultimate Overload	%R.C.	300
Material		Aluminum
The length of the cable	m	3m
Wiring code	Ex:	Red：＋ Black：–
Wiring code	Sig:	Green：＋ White：–

Product name :	TS Tension Sensor
Product brand :	LIBIRINTH
Warranty:	12 months
Rated Load:	0.5kg，1kg，2kg，3kg
Custom-Made:	YES
Output Type:	Analog millivolt voltage signal output：mV/V
Rated Output:	1mV/V
Material:	Aluminum
Output Impedance:	350±5Ω
Input Impedance:	350±3Ω
The length of the cable:	3m
Recommended excition voltage:	5-12V
