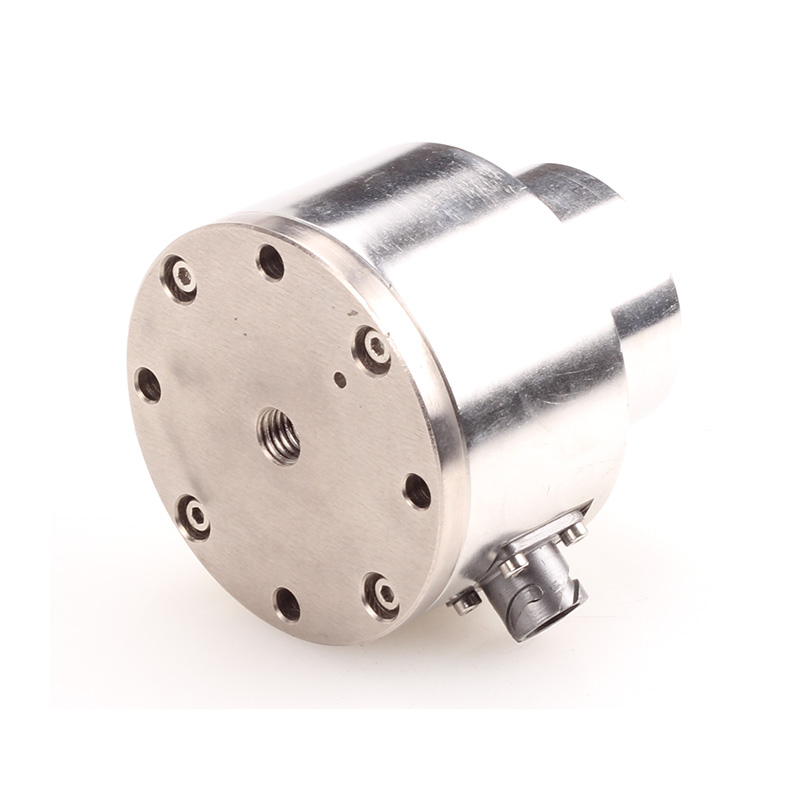

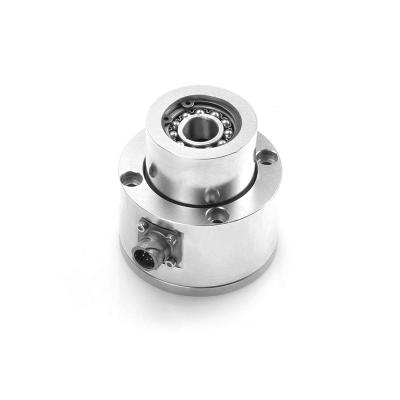

HLT Tension Sensor

Be suitable for measuring the tension that plastic film or tapes exert on the guide dollars of the machinery used to coil them.

本店价：

👈Consult customer service for a quote 0 have been sold|0 evaluation

BrandEnter the LIBIRINTH Brand Pavilion

Capacity

10kg

25kg

50kg

100kg

张力传感器

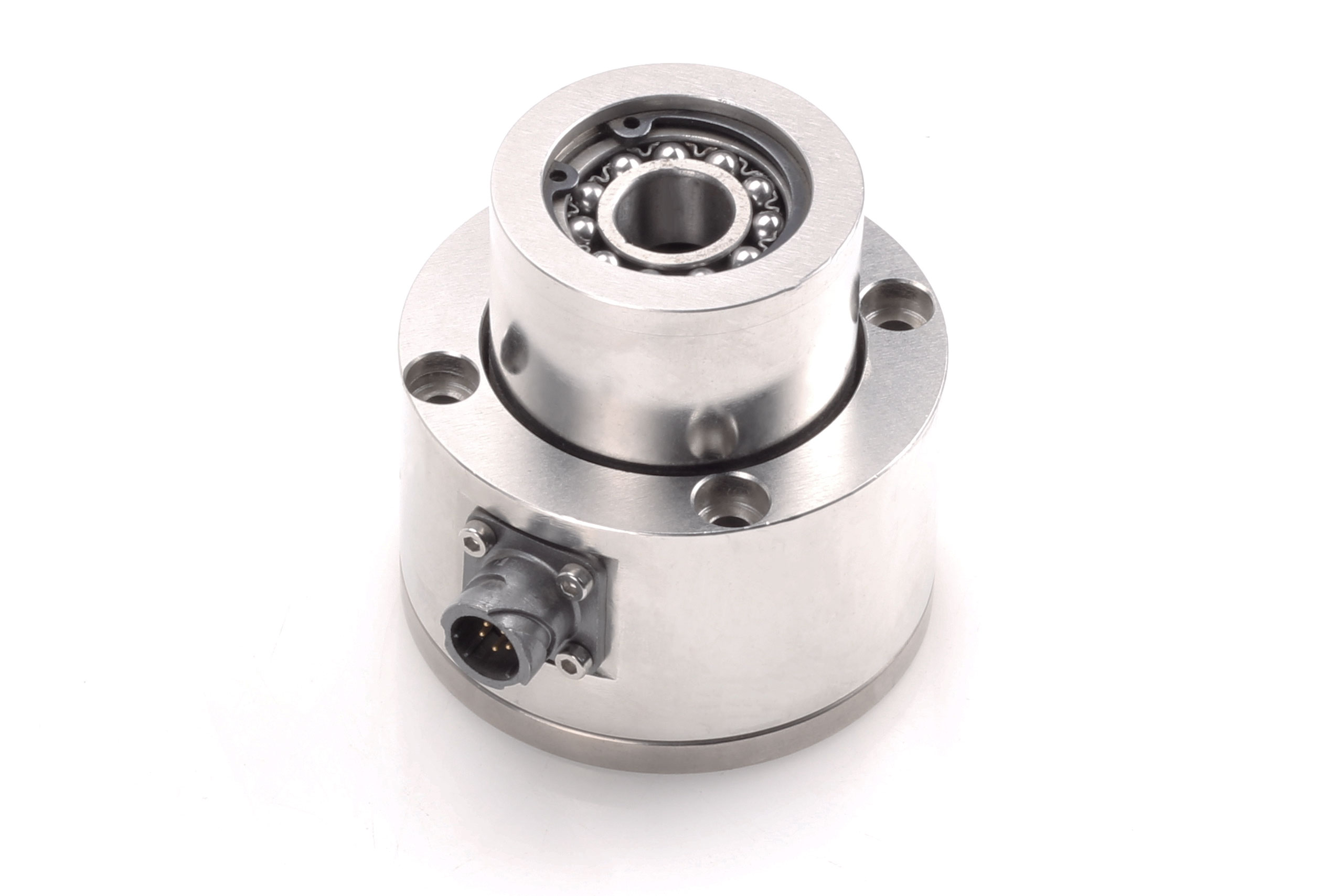

Tension Sensor

Description:

Model: HPB

Features:

1. Capacities (kg): 10 to 100

2. Resistance strain measurement method

3. The level of water-proof reaches IP65

4. Internally generated calibration signal

5. Compact structure, easy to install

6. High comprehensive precision, high stability

7. High quality alloy steel with nickel plating

8. Stainless steel material is available

Applications:

Be suitable for measuring the tension that plastic film or tapes exert on the guide dollars of the machinery used to coil them.

Specifications:

Rated Load	kg	10, 25, 50, 100
Rated Output	mV/V	1 ± 0.1%
Zero Balance	%R.O.	±1
Comprehensive Error	%R.O.	±0.3
Compensated Temp. Range	‌℃	-10~+40
Operating Temp. Range	℃	-20~+70
Temp. effect/10℃ on output	%R.O./10 ℃	±0.3
Temp. effect/10℃ on zero	%R.O./10 ℃	±0.3
Recommended Excitation Voltage	VDC	5-12
Maximum Excitation Voltage	VDC	15
Input impedance	Ω	380±10
Output impedance	Ω	350±5
Insulation resistance	MΩ	≥5000（50VDC）
Safe Overload	%R.C.	150
Ultimate Overload	%R.C.	300
Material		Alloy Steel
Degree of protection		IP65
The length of the cable	m	3m
Wiring code	Ex:	Red：＋ Black：–
Wiring code	Sig:	Green：＋ White：–

Specification

Product name :	HLT Tension Sensor
Product brand :	LIBIRINTH
Warranty:	12 months
Rated Load:	10kg，25kg，50kg，100kg
Custom-Made:	YES
Output Type:	Analog millivolt voltage signal output：mV/V
Rated Output:	1±0.1%mV/V
Material:	Alloy Steel
Output Impedance:	380±10Ω
Input Impedance:	350±5Ω
The length of the cable:	3m
Recommended excition voltage:	5-12V
