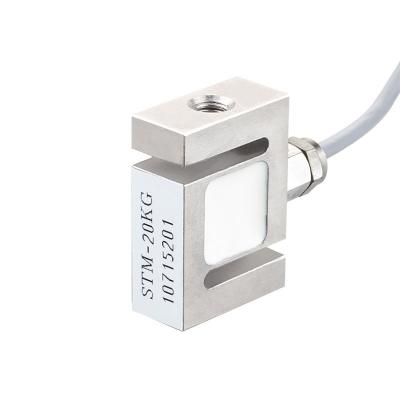

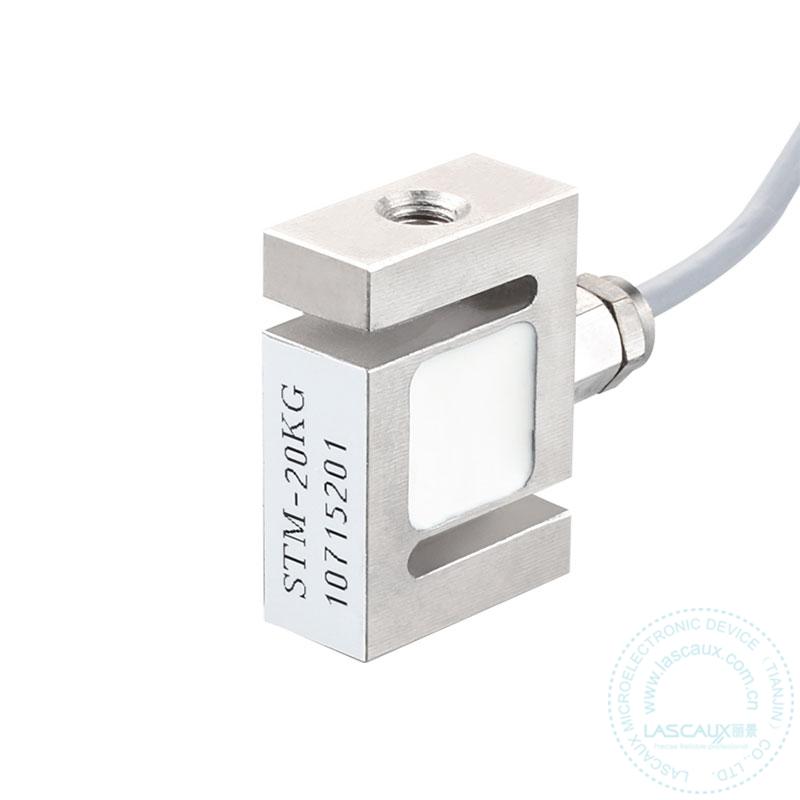

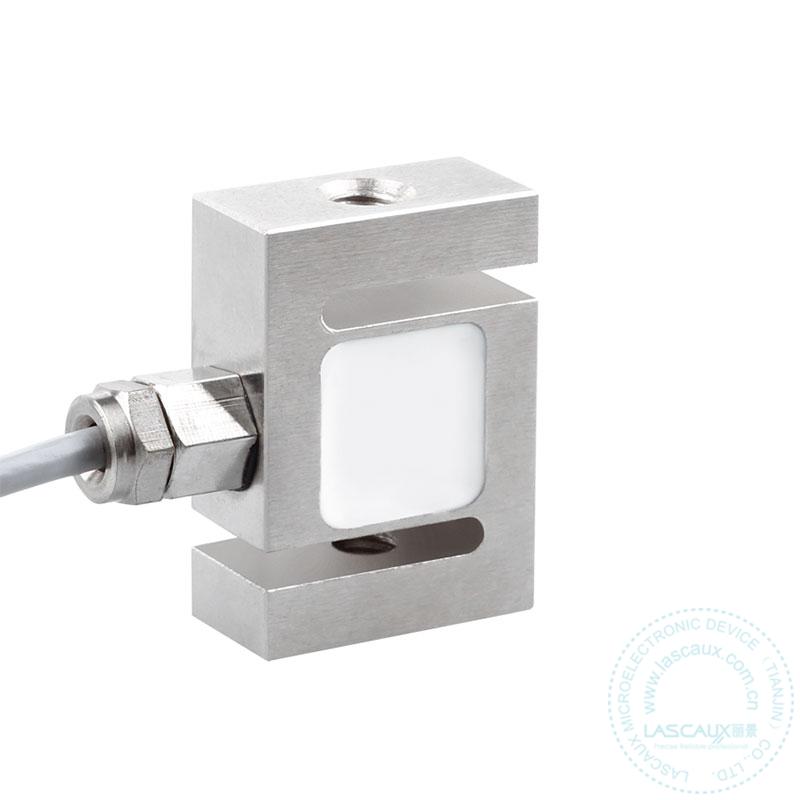

STM S-Type Load Cell

Be suitable for a wide range of applications including testing or weighing systems, and it can be put into the device, in order to monitor the force.

本店价：

👈Consult customer service for a quote 174 have been sold|0 evaluation

BrandEnter the LIBIRINTH Brand Pavilion

Capacity

2kg

5kg

10kg

20kg

50kg

STM S-Type load cell

Datasheet:

STM Datasheet

Description：

Model: STM

Features:

1. Capacities (kg): 2 to 50

2. Compact structure, easy to install

3. Compression and tension load cell

4. High comprehensive precision, high stability

5. Stainless steel material

Applications:

Be suitable for a wide range of applications including testing or weighing systems, and it can be put into the device, in order to monitor the force.

Specifications:

Rated Load	kg	2,5,10,20,50
Rated Output	mV/V	1(2kg),2(5kg-50kg)
Zero Balance	%R.O.	±2
Comprehensive Error	%R.O.	±0.05
Non-linearity	%R.O.	±0.05
Hysteresis	%R.O.	±0.05
Repeatability	%R.O.	±0.05
Creep/30 minutes	%R.O.	±0.05
Compensated Temp. Range	‌℃	-10~+40
Operating Temp. Range	℃	-20~+70
Temp. effect/10℃ on output	%R.O./10 ℃	±0.05
Temp. effect/10℃ on zero	%R.O./10 ℃	±0.05
Recommended Excitation Voltage	VDC	5-10
Maximum Excitation Voltage	VDC	15
Input impedance	Ω	350±5
Output impedance	Ω	350±3
Insulation resistance	MΩ	≥5000（50VDC）
Safe Overload	%R.C.	150
Ultimate Overload	%R.C.	200
Material		Stainless Steel
Degree of protection		IP65
The length of the cable	m	1m(2kg-10kg),3m(10kg-50kg)
Wiring code	Ex:	Red:＋ Black:–
Wiring code	Sig:	Green(Blue):＋ White:–

Specification

Product name :	STM S-Type Load Cell
Product brand :	LIBIRINTH
Warranty:	12 months
Rated Load:	2kg，5kg，10kg，20kg，50kg
Output Type:	Analog millivolt voltage signal output：mV/V
Rated Output:	1.0mV/V（2kg），2.0mV/V（5kg-50kg））
Comprehensive Error:	0.05%R.O
Material:	Stainless Steel
The lengh of the cable:	1m
Input Impedance:	350±5Ω
Output Impedance:	350±3Ω
Recommended Excitation Voltage:	5-12v
