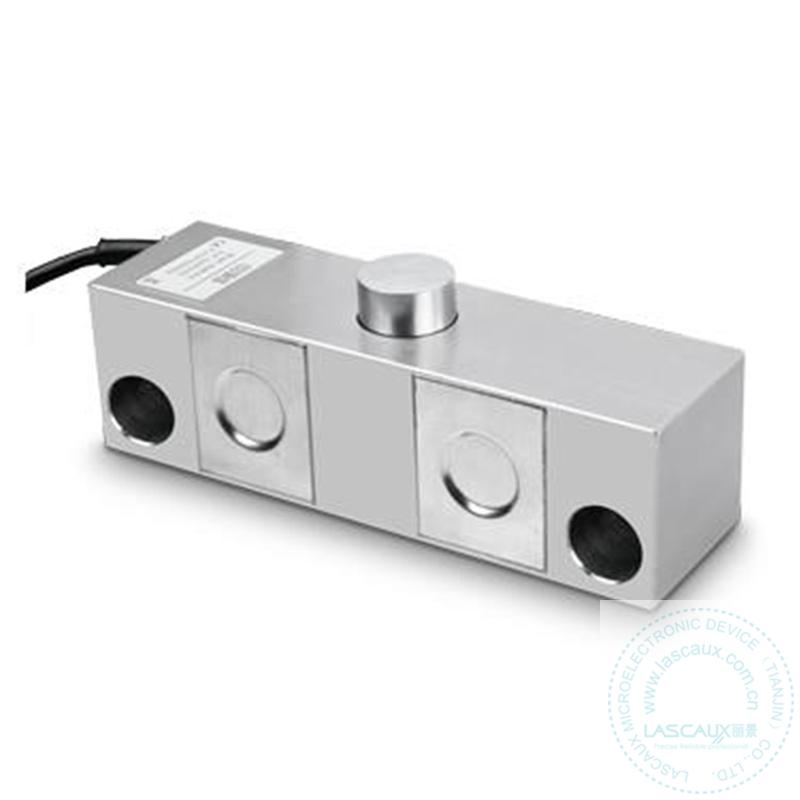

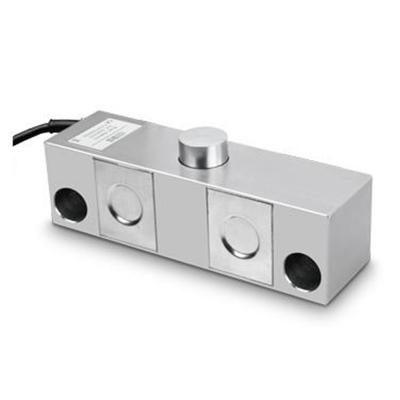

Dini Argeo DSBI SERIES DOUBLE SHEAR BEAM STAINLESS STEEL LOAD CELLS

本店价：

👈Consult customer service for a quote 0 have been sold|0 evaluation

BrandEnter the DINIARGEO Brand Pavilion

产品规格

10t

20t

30t

Stainless steel double shear beam load cells suitable for building, for example, to make CE-M approved scales for high capacities or for weighing tanks and hoppers with the relevant accessories. High accuracy also with the expansion of the weighing structures.

CAPACITIES (kg): 10000, 20000, 30000.

OIML R60. C4 precision class.

17-4 PH stainless steel. IP68 protection.

TECHNICAL FEATURES

C4 PRECISION CLASS

17-4 PH STAINLESS STEEL CONSTRUCTION

IP68 PROTECTION

MAX. CAPACITIES FROM 10000 TO 30000 kg

SHIELDED CONNECTION CABLE

TEST CERTIFICATE AVAILABLE UPON REQUEST

MAIN FEATURES

Minimum load cell verification interval: Vmin = EMax / 10.000

Combined error 0,03% of Full Scale Output (F.S.)

Full Scale Output: 2mV/V +/- 0,1%

Temperature effect on zero: 0,00116% /°C

Temperature effect on full scale output: 0,00097% /°C

Compensated Temperature Range: -10°C/+40°C

Operating Temperature Range: -30°C/+85°C

Creep error after 30 minutes: <0,02% F.S.

Maximum tolerated excitation voltage: 15 VDC

Input Resistance: 700 ± 7 Ohm

Output Resistance: 700 ± 7 Ohm

Zero Balance: +/- 1% F.S.

Insulation Resistance: >5000 MOhm

Safe Overload: 150% F.S.

Ultimate Overload: 300% F.S.

6-wire shielded cable, 15m long

ATEX VERSION

The CCATEX certificate makes the load cell suitable for use in hazardous areas with protection methods according to:
ATEX II 1G Ex ia IIC T6 (Ta -20÷+40°C) TX (Ta -20÷+65°C) Ga
ATEX II 1D Ex ta IIIC TX°C (Ta -20÷+40°C) TX°C (Ta -20÷+65°C) Da IP65.
The certificate includes the manual and the ATEX CE conformity declaration (available in EN, DE, FR, and IT).

IMPORTANT: the certificate refers to the single load cell. For systems with more load cells, it is necessary to order one certificate for each load cell.

Wiring Code

Colour
Function

GREEN
OUTPUT +

PURPLE
SENSE +

RED
INPUT +

WHITE
OUTPUT -

BLACK
INPUT -

GREY
SENSE -

Specification

Product name :	Dini Argeo DSBI SERIES DOUBLE SHEAR BEAM STAINLESS STEEL LOAD CELLS
Product brand :	DINIARGEO
Warranty:	12个月
额定载荷:	10t,20t,30t
精度等级:	C4
Output Type:	模拟量毫伏值电压信号输出：mV/V
额定输出:	2mV/V±0.1%
综合误差:	0.03%F.S.
Creep (30 min.):	0.02%F.S.
最小检定分度值:	Vmin=EMax/10.000
最大激励电压:	15VDC
Input impedance:	700±7Ω
Output impedance:	700±7Ω
zero return:	±1%F.S.
Safe Overload:	150%F.S.
Ultimate overload:	300%F.S.
Degree of protection:	IP68
Elastic element material:	17-4PH不锈钢
The lengh of the cable:	15m
Cable Type:	6芯屏蔽电缆，直径4.7mm
