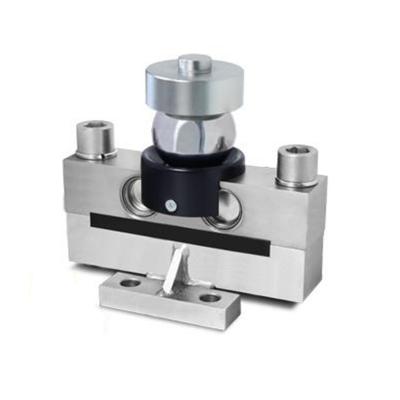

Dini Argeo RSBT DOUBLE SHEAR BEAM LOAD CELLS

分享商品：

Dini Argeo RSBT DOUBLE SHEAR BEAM LOAD CELLS

本店价：

👈Consult customer service for a quote 0 have been sold|0 evaluation

BrandEnter the DINIARGEO Brand Pavilion

产品规格

25t

Double shear beam load cells particularly suitable for weighing weighbridges, dosage systems, tanks, silos, etc., complete with support and oscillating spherical joint. CE-M approved.

CAPACITIES (kg): 25000, 30000, 40000.

OIML R60. C3 precision class.

Nickel-plated steel. IP68 protection.

MAIN FEATURES

C3 PRECISION CLASS;

EXECUTED IN NICKEL-PLATED STEEL WITH LASER SOLDERINGS;

HIGH PRECISION AND LINEARITY ALSO WITH NON PERPENDICULAR LOADS;

OPTIMISED FOR PARALLEL CONNECTION;

IP68 PROTECTION DEGREE;

CAPACITY FROM 25000 TO 40000kg;

SHIELDED TEFLON CONNECTION CABLE;

TEST CERTIFICATE AVAILABLE UPON REQUEST.

TECHNICAL FEATURES

Minimum verification interval: Vmin = EMax / 10.000;

Maximum number of load cell divisions: nLC=3000 (C3);

Full Scale Output: 2mV/V +/- 0,2%;

Temperature effect on full scale output: 0,0014%FS/°C;

Tempeature effect on the zero: +/- 0,0017%FS/°C;

Compensated temperature range: -10°C/+40°C;

Operating temperature range: -35°C/+65°C;

Creep error after 30 minutes: 0,02% F.S;

Excitation voltage: from 5 to 18 VDC;

Input Resistance: 750 Ohm;

Output Resistance: 700 ± 7 Ohm;

Zero Balance: +/-1,5% F.S.;

Insulation resistance > 5000 MOhm;

Safe overload > 150% F.S.;

Maximum overload 300% F.S.;

4-wire shielded cable, 15m long.

Wiring Code

Colour
Function

--
SHIELD

GREEN
OUTPUT +

RED
INPUT +

WHITE
OUTPUT -

BLACK
INPUT -

ATEX VERSION

The CCATEX certificate makes the load cell suitable for use in hazardous areas with protection methods according to:
ATEX II 1G Ex ia IIC T6 (Ta -20÷+40°C) TX (Ta -20÷+65°C) Ga
ATEX II 1D Ex ta IIIC TX°C (Ta -20÷+40°C) TX°C (Ta -20÷+65°C) Da IP65.
The certificate includes the manual and the ATEX CE conformity declaration (available in EN, DE, FR, and IT).

IMPORTANT: the certificate refers to the single load cell. For systems with more load cells, it is necessary to order one certificate for each load cell.

Specification

Product name :	Dini Argeo RSBT DOUBLE SHEAR BEAM LOAD CELLS
Product brand :	DINIARGEO
Warranty:	12个月
额定载荷:	25t
精度等级:	C3
Output Type:	模拟量毫伏值电压信号输出：mV/V
额定输出:	2mV/V±0.2%
Creep (30 min.):	0.02%F.S.
最小检定分度值:	Vmin=EMax/10.000
最大检定分度数:	nLC=3000
最大激励电压:	5-18VDC
Input impedance:	700±7Ω
Output impedance:	700±7Ω
zero return:	±1.5%F.S.
Safe Overload:	150%F.S.
Ultimate overload:	300%F.S.
Degree of protection:	IP68
Elastic element material:	镀镍钢
The lengh of the cable:	15mm
Cable Type:	4芯屏蔽电缆
