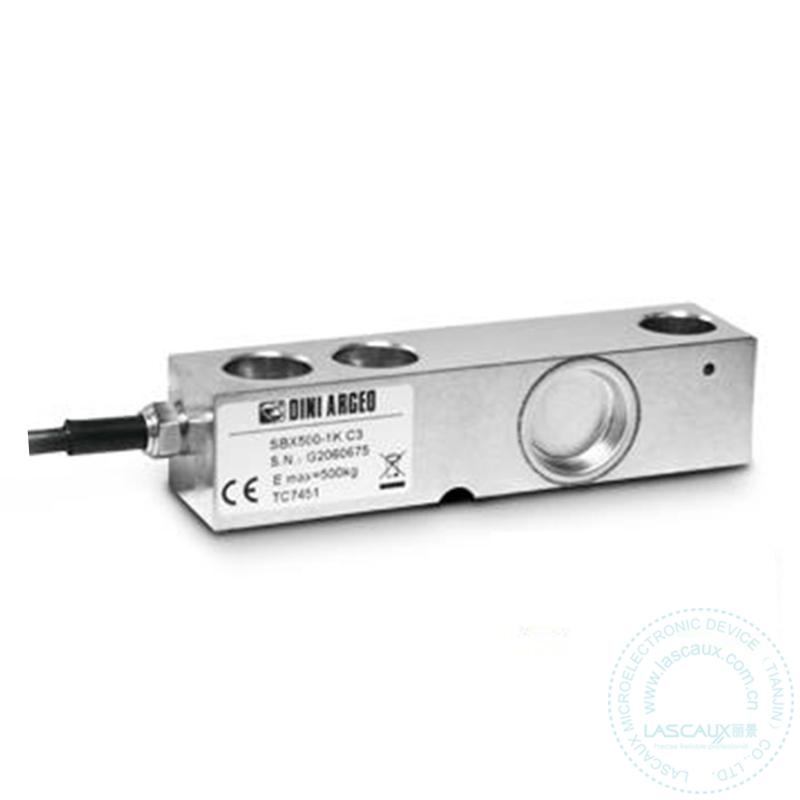

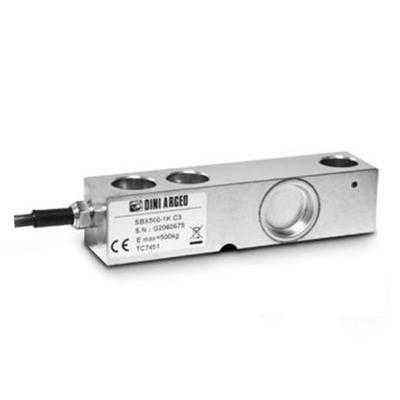

Dini Argeo SBX-1KL SERIES SHEAR BEAM LOAD CELLS, from 500kg to 2500kg

本店价：

👈Consult customer service for a quote 0 have been sold|0 evaluation

BrandEnter the DINIARGEO Brand Pavilion

产品规格

500kg

1t

2t

Stainless steel approved shear beam load cells, suitable for creating CE-M approved scales with 4 load cells, or for weighing tanks and hoppers, with the aid of its accessories.

CAPACITIES (kg): 500, 1000, 2000, 2500.

OIML R60. C3 precision class.

Stainless steel. IP68 protection.

MAIN FEATURES

C3 PRECISION CLASS
STAINLESS STEEL CONSTRUCTION WITH LASER WELDING
IP68 PROTECTION, IP69K UPON REQUEST
MAX. CAPACITIES FROM 500 TO 2500 kg
SHIELDED CONNECTION CABLE
TEST CERTIFICATE PROVIDED AS STANDARD

TECHNICAL FEATURES

Minimum load cell verification interval Vmin = EMax / 10.000
Maximum number of verification intervals nLC = 3000
Combined error 0,017% of Full Scale Output (F.S.)
Full Scale Output 2mV/V +/- 0.5%
Temperature effect on zero 0,002% / °C
Temperature effect on full scale output 0,002% / °C
Compensated Temperature Range -10°C/+50°C
Operating Temperature Range -20°C/+60°C
Creep error after 30 minutes 0,02% F.S.
Maximum tolerated excitation voltage 15 VDC
Input Resistance 1100 ± 20 Ohm
Output Resistance 1000 ± 20 Ohm
Insulation Resistance >5000 MOhm
Safe Overload 120% F.S.
Ultimate Overload 300% F.S.
6-wire shielded cable, 5m long, 5 mm diameter

ATEX VERSION

The CCATEX certificate makes the load cell suitable for use in hazardous areas with protection methods according to:
ATEX II 1G Ex ia IIC T6 (Ta -20÷+40°C) TX (Ta -20÷+65°C) Ga
ATEX II 1D Ex ta IIIC TX°C (Ta -20÷+40°C) TX°C (Ta -20÷+65°C) Da IP65.
The certificate includes the manual and the ATEX CE conformity declaration (available in EN, DE, FR, and IT).
IMPORTANT: the certificate refers to the single load cell. For systems with more load cells, it is necessary to order one certificate for each load cell.

DIMENSIONS - DECODING STANDARD CABLE

NOTE: dimensions in mm

Decoding of the standard cable colours

Colour	Function
--	SHIELD
YELLOW	OUTPUT +
GREY	SENSE +
BROWN	INPUT +
WHITE	OUTPUT -
GREEN	INPUT -
PINK	SENSE -

Specification

Product name :	Dini Argeo SBX-1KL SERIES SHEAR BEAM LOAD CELLS, from 500kg to 2500kg
Product brand :	DINIARGEO
Warranty:	12个月
额定载荷:	500kg,1t,2t
精度等级:	C3
Output Type:	模拟量毫伏值电压信号输出：mV/V
额定输出:	2mV/V±0.5%
综合误差:	±0.017%F.S
Creep (30 min.):	0.024%F.S.
最小检定分度值:	Vmin=EMax/10.000
最大检定分度数:	nLC=3000
最大激励电压:	15VDC
Input impedance:	1100±20Ω
Output impedance:	1000±20Ω
Safe Overload:	150%F.S.
Ultimate overload:	300%F.S.
Degree of protection:	IP68
Elastic element material:	17-4PH不锈钢
The lengh of the cable:	5m
Cable Type:	6芯屏蔽电缆，直径5mm
