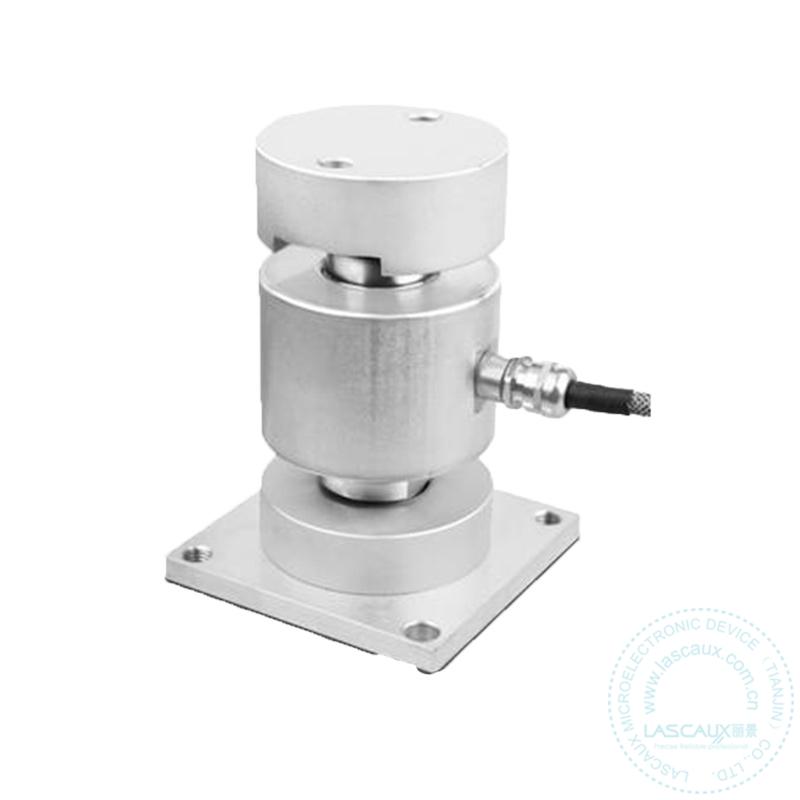

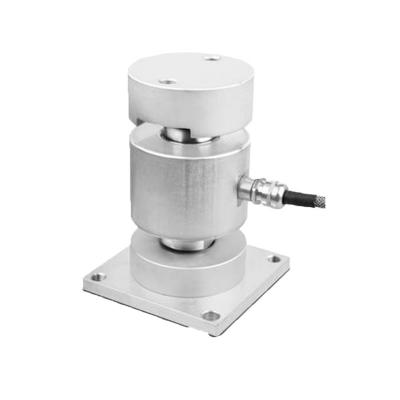

DINI ARGEO ANALOGUE COLUMN LOAD CELL, IN STAINLESS STEEL, “RCA” SERIES

RCA LOAD CELL: CONNECTION CABLE

Wiring Code
Colour	Function
WHITE	OUTPUT +
RED	INPUT +
YELLOW	OUTPUT -
BLUE	INPUT -

RCA LOAD CELL: INSTALLATION KIT

The KRCA kit allows a correct installation of the RCA load cells below the weighbridge plate
The kit consists of an upper cup with anti-rotation system, a lower cup and a two-hole plate for easier and faster fixing. All components are made from nickel-plated steel.
Both cups are designed for optimal operation in conjunction with the cell’s self-centring spherical bases, allowing their proper oscillation and return to position.
The cups are also fitted with triple function integrated washers:
- they keep lubricating grease in its place.
- they simplify the proper positioning and levelling of the cell and support it during installation/maintenance.
- they protect the system by preventing dirt and water from accumulating on the bottom of the cup, thus maintaining the correct oscillation and mechanical compensation of the load cells over time.

Analogue version of compression load cells, ideal for CE-M approved weighbridges, tanks, silos, etc. Manufactured in STAINLESS STEEL, IP68 protection, 4000 divisions, fitted with “rodent proof” armoured cable.

CAPACITIES (kg): 30000.

OIML R60. C4 precision class.

Load cells with stainless steel body. Degree of protection IP68.

20m Armoured Rodent Resistant Cable, with standard Stainless Steel Armor.

Integrated Surge Arresters as Standard

Low Profile Height of only 130mm.

Version available for ATEX environments.

TECHNICAL FEATURES

METROLOGICAL:
Rated capacity (Cn): 30t
Combined error: ± 0,013 %Cn
Temperature effect on zero: 0,0014 %Cn/°C
Temperature effect on sensitivity: 0,0011 %Cn/°C
Creep error (30 min.): 0,018 %Cn

LEGAL METROLOGY OIML R60
Accuracy class: C4
Max. number of intervals (nmax): 4000e OIML
Minimum verification interval (vmin): 10000
Z= Emax/(2xDR): 4000

ELECTRICAL
Nominal range of excitation voltage: 1 - 15Vdc
Rated output at Cn: 2mV/V
Zero balance: < ± 2.50%Cn
Input resistance: 815 ± 20Ω
Output resistance: 700 ± 0.35Ω
Current Adjustment: 0,1 %Cn
Over voltage protection: 10kA/20kV (8/20µs) - IEC61000-4/5
Insulation resistance: 5000MΩ/50V

GENERAL
Service temperature range: -20 ~ +60 °C
Compensated temperature range: -10 ~ +40 °C
Safe load limit: 150% Emax
Ultimate overload: 300% Emax
Protection degree IP68
Load cells with stainless steel body
4-core armoured cable, PVC sheath, 20m length.
Nickel plated steel cable gland.
Armoured Anti Rodent Cable with Stainless Steel Armour.
Self-centring spherical bases.
Equipped with anti-rotation system, to be combined with KRCA cups for proper operation.

ATEX VERSION RCA LOAD CELL

An ATEX version of the RCA load cell is available for explosive atmospheres.
The CCATEX certificate makes the load cell suitable for use in hazardous areas with protection methods according to:
ATEX II 1G Ex ia IIC T6 (Ta -20÷+40°C) TX (Ta -20÷+65°C) Ga
ATEX II 1D Ex ta IIIC TX°C (Ta -20÷+40°C) TX°C (Ta -20÷+65°C) Da IP65.
The certificate includes the manual and the ATEX CE conformity declaration (available in EN, DE, FR, and IT).
IMPORTANT: the certificate refers to the single load cell. For systems with more load cells, it is necessary to order one certificate for each load cell.

Specification

Product name :	Dini Argeo DINI ARGEO ANALOGUE COLUMN LOAD CELL, IN STAINLESS STEEL, “RCA” SERIES
Product brand :	DINIARGEO
Warranty:	12个月
额定载荷:	30t
精度等级:	C4
Output Type:	模拟量毫伏值电压信号输出：mV/V
额定输出:	2mV/V±0.1%
综合误差:	±0.017%F.S
Input impedance:	815±20Ω
Output impedance:	700±5Ω
Safe Overload:	150%F.S.
Degree of protection:	IP68
Elastic element material:	不锈钢
Cable Type:	4芯屏蔽电缆
