The CCATEX certificate makes the load cell suitable for use in hazardous areas with protection methods according to:
ATEX II 1G Ex ia IIC T6 (Ta -20÷+40°C) TX (Ta -20÷+65°C) Ga
ATEX II 1D Ex ta IIIC TX°C (Ta -20÷+40°C) TX°C (Ta -20÷+65°C) Da IP65.
The certificate includes the manual and the ATEX CE conformity declaration (available in EN, DE, FR, and IT).
-
The CCATEX certificate is issued after the checks done by qualified technicians, with the help of specific equipments, for each load cell.
-
IMPORTANT: the certificate refers to the single load cell. For systems with more load cells, it is necessary to order one certificate for each load cell.
|
|
|

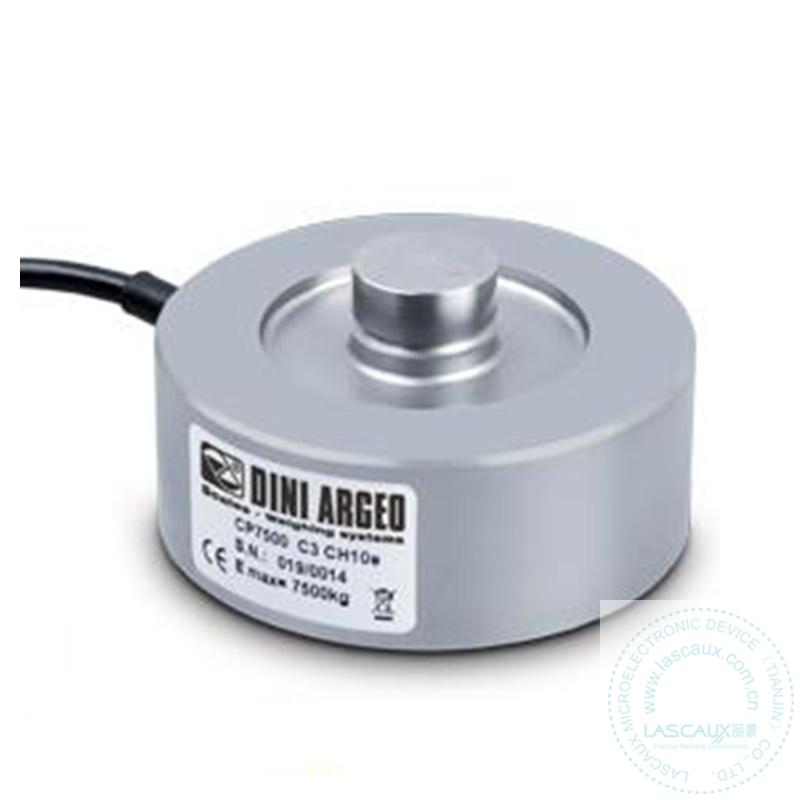

Stainless steel compression load cells suitable for weighing tanks and hoppers with the relevant accessories.
CAPACITIES (kg): 250, 500, 1000, 2500, 5000, 7500, 10000, 12500, 15000, 30000, 50000, 100000.
OIML R60, C3 precision class from 2500 to 12500kg.
Stainless steel. IP68/IP69K protection.
|
|
|
|
|
|
TECHNICAL FEATURES
|
|
|
|
-
Minimum load cell verification interval: Vmin = EMax / 10000
-
Full Scale Output: 2mV/V +/- 0,5%
-
Non-Repeatability: 0,01% F.S.
-
Combined Error 0,05%
-
Temperature effect on zero: 0,02% / 10°C
-
Temperature effect on full scale output: 0,02% / 10°C
-
Compensated Temperature Range: -10°C/+40°C
-
Operating Temperature Range: -20°C/+60°C
-
Creep error after 30 minutes: 0,02% F.S.
-
Maximum tolerated excitation voltage: 15 Vdc
-
Input Resistance: 750 ± 10 Ohm
-
Output Resistance: 700 ± 5 Ohm
-
Zero Balance: +/-1% F.S.
-
Insulation Resistance: >5000 MOhm
-
Safe Overload: 120% F.S.
-
4-wire shielded cable, 5 mm diameter:
- 5 m long for CPX 250...5000 versions;
- 10 m long for CPX 7500...100000 versions.
|
Wiring Code
|
|
Colour
|
Function
|
|
--
|
SHIELD
|
|
GREEN
|
OUTPUT +
|
|
RED
|
INPUT +
|
|
WHITE
|
OUTPUT -
|
|
BLACK
|
INPUT -
|
|
|
|
