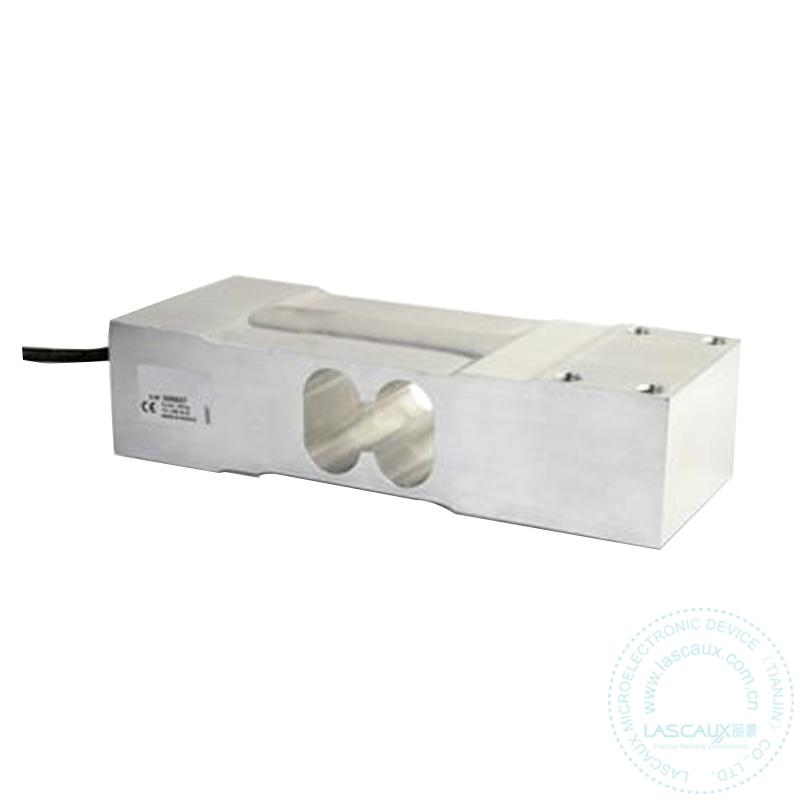

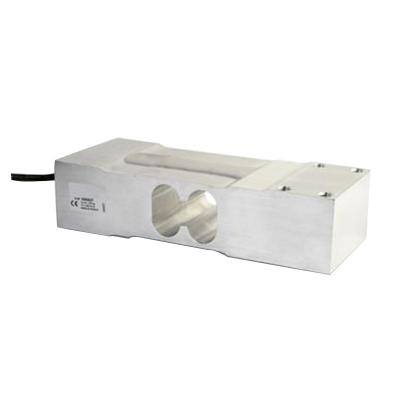

SPBC SERIES SINGLE POINT LOAD CELLS

Dimensions (mm)

Load cells for off center loads, suitable for example to build CE-M approved scales with a single load cell with maximum dimensions of 700x700 mm.

CAPACITIES (kg): 100, 200, 300, 500, 630.

OIML R60. C3 precision class.

Aluminium alloy. IP65 protection.

MAIN FEATURES

The CCATEX certificate makes the load cell suitable for use in hazardous areas with protection methods according to:
ATEX II 1G Ex ia IIC T6 (Ta -20÷+40°C) TX (Ta -20÷+65°C) Ga
ATEX II 1D Ex ta IIIC TX°C (Ta -20÷+40°C) TX°C (Ta -20÷+65°C) Da IP65.
The certificate includes the manual and the ATEX CE conformity declaration (available in EN, DE, FR, and IT).
IMPORTANT: the certificate refers to the single load cell. For systems with more load cells, it is necessary to order one certificate for each load cell.

Product name :	Dini Argeo SPBC SERIES SINGLE POINT LOAD CELLS
Product brand :	DINIARGEO
Warranty:	12个月
额定载荷:	100kg,200kg,300kg,500kg,630kg
精度等级:	C3
Output Type:	模拟量毫伏值电压信号输出：mV/V
额定输出:	2mV/V±10%
综合误差:	±0.017%F.S
Creep (30 min.):	0.025%F.S.
最小检定分度值:	Vmin=EMax/10.000
最大检定分度数:	nLC=3000
最大激励电压:	15VDC
Input impedance:	410±10Ω
Output impedance:	350±5Ω
zero return:	±10%F.S.
Safe Overload:	150%F.S.
Ultimate overload:	200%F.S.
Degree of protection:	IP65
Elastic element material:	铝合金
The lengh of the cable:	3m
Cable Type:	6芯屏蔽电缆，直径5mm
