LOC
Datasheet:LOC DatasheetFeatures:
Applications
DescriptionLOC is a low profile single-point load cell designed for platform scales and hanging scales. It is a cost-effective load cell for scales of simple construction. LOC is constructed of anodized aluminum, and is environmentally sealed up to IP66 levels providing excellent protection against moisture and humidity. |
| Product name : | CELTRON LOC Low Profile Single-Point Load Cell |
| Product brand : | CELTRON |
| Warranty: | 12个月 |
| 额定载荷: | 5kg,7kg,10kg,15kg,20kg,30kg,50kg,60kg,75kg,100kg,150kg,250kg,300kg,500kg,635kg,800kg,1000kg |
| 输出类型: | 模拟量毫伏值电压信号输出：mV/V |
| 额定输出: | 2.0mV/V |
| 非线性: | 0.025%R.O. |
| Hysteresis: | 0.025%R.O. |
| Repeatability: | 0.02%R.O. |
| Creep (20 min.): | 0.03%R.O. |
| Safe overload: | 150%R.O |
| Ultimate overload: | 200%R.O |
| Recommended excition voltage: | 10VDC |
| Maximum excitation: | 15VDC |
| Input impedance: | 410±10Ω |
| Output impedance: | 350±3Ω |
| Insulation resistance: | >5000MΩ |
| Material: | 阳极氧化铝 |
| Degree of protection: | IP66 |
| The lengh of the cable: | 1m(SE),2m(ME),3m(LE) |

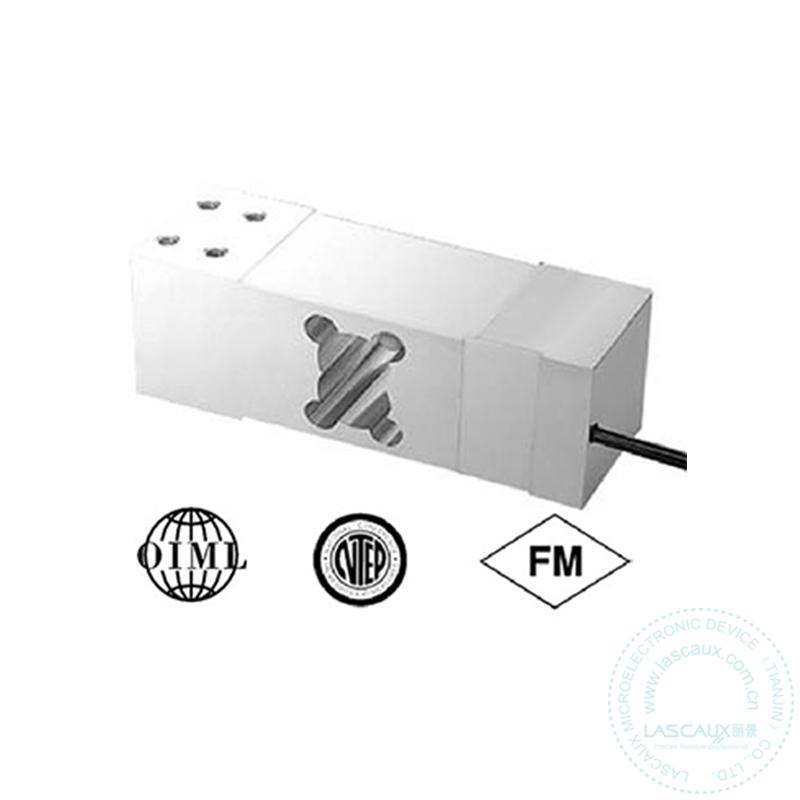

CELTRON LOC Low Profile Single-Point Load Cell
