STC
Datasheet:STC DatasheetFeatures:
Applications

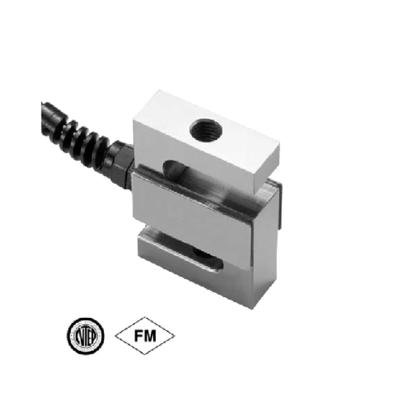

DescriptionThe S-type load cell, as the name indicates, can be easily identified by S-shaped body. They can be loaded either in tension or compression, and used for single or multiple-cell application if the output is rationalized. STC is made of Aluminum, Alloy Steel or Stainless Steel,sealed to IP67 providing excellent protection against moisture and humidity. |
| Product name : | CELTRON STC S-Type Load Cell |
| Product brand : | CELTRON |
| Warranty: | 12个月 |
| 额定载荷: | 5kg,10kg,20kg,25kg,50kg,75kg,100kg,250kg,500kg,750kg,1000kg,1500kg,2000kg,2500kg,5000kg |
| 输出类型: | 模拟量毫伏值电压信号输出：mV/V |
| 额定输出: | 2.0mV/V(铝),3.0mV/V(钢) |
| 非线性: | 0.02%R.O. |
| Hysteresis: | 0.02%R.O. |
| Repeatability: | 0.02%R.O. |
| Creep (20 min.): | 0.02%R.O. |
| Safe overload: | 150%R.O. |
| Ultimate overload: | 200(铝)/300(钢) |
| Recommended excition voltage: | 10VDC |
| Maximum excitation: | 15VDC |
| Input impedance: | 410±5Ω(铝)/385±5Ω(钢) |
| Output impedance: | 350±3Ω |
| Insulation resistance: | >5000MΩ |
| Material: | 铝或合金钢镀镍 |
| Degree of protection: | IP67 |
| The lengh of the cable: | 6.1m |
