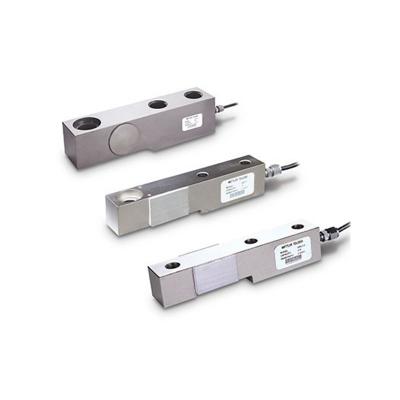

梅特勒SB盲孔型传感器，Mettler Teledo托利多称重传感器. |
| 剪切梁称重传感器 |
| 合金钢材质，表面镀镍 |
| 受力方式：压式 |
| IP67防护等级 |
| 高精度，高稳定性 |
| 使用方便 |
| 安装附件可选 |
| 量程可选：300kg,500kg,1T,2T,3T,5T,10T,15T,20T |
| 适用范围：地磅，汽车衡，轨道衡，料罐，料仓等设备 |
|
参数
|
单位
|
值
|
||
|
额定量程
|
t
|
0.5，1，2，3,5,10,15,20,30 |
||
|
灵敏度
|
mv/v
|
2±10
|
||
|
精准等级
|
|
OIML R60 C3
|
|
|
|
零点输出
|
%R.O
|
≤±10
|
|
|
|
温度补偿范围
|
℃
|
-10 to + 40
|
|
|
|
工作温度范围
|
℃
|
-20 to + 65
|
||
|
输入阻抗
|
Ohms
|
410 ± 10
|
||
|
输出阻抗
|
Ohms
|
350 ± 1
|
||
|
绝缘阻抗
|
Mega-ohms
|
≥5000 M ohm
|
||
|
推荐激励电压
|
VDC/VDA
|
5~15
|
||
|
最大激励电压
|
VDC/VDA
|
20
|
||
|
安全过载
|
%
|
150%
|
||
|
极限过载
|
%
|
300%
|
||
|
防护等级
|
|
IP67
|
||
|
最大台面尺寸
|
mm
|
350*350
|
||
|
电缆长度
|
m
|
0.5
|
||
|
容量
|
A
|
|
3kg,5kg,7kg
|
25.4
|
|
10kg,15kg,20kg,30kg
|
30
|
|
1. 避免超量程使用，使用时不能过载 2.使用时注意使传感器垂直载荷 |
| Product name : | SB Beam Load Cells |
| Product brand : | METTLER TOLEDO |
| Warranty: | 12个月 |
| 额定载荷: | 0.3t，0.5t，1t，2t，3t，5t，10t，15t，20t |
| 输出类型: | 模拟量毫伏值电压信号输出：mV/V |
| 重复性误差: | ≤0.01%R.C. |
| 精度等级: | C3 |
| 额定输出: | 2±0.002mV/V |
| 非线性: | ≤0.02%R.C. |
| Hysteresis: | ≤0.02%R.C. |
| Input impedance: | 381±4 |
| Output impedance: | 350±1Ω |
| Insulation resistance: | ≥5000(50V DC) |
| Rate Excitation: | 5-15v |
| Maximum excitation: | 20v |
| Safe Overload: | 150%R.C. |
| Ultimate overload: | 300%R.C. |
| Protection class: | IP67 |
| The lengh of the cable: | 4m(0.3t-3t),5m(5t),6m(10t),10m(15t-20t) |
| Tightening torque: | 98N·m(0.3t-2t),160N·m(3t),275N·m(5t),1255N·m(10t),1700N·m(15t-20t) |
| Material: | 合金钢 |
| Bearing hole structure: | 盲孔 |
