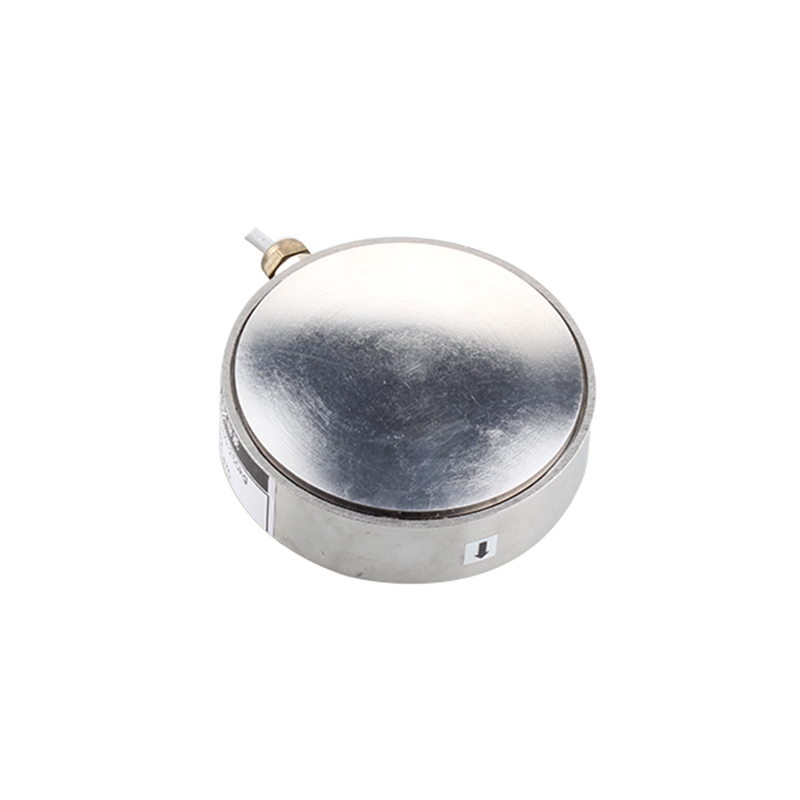

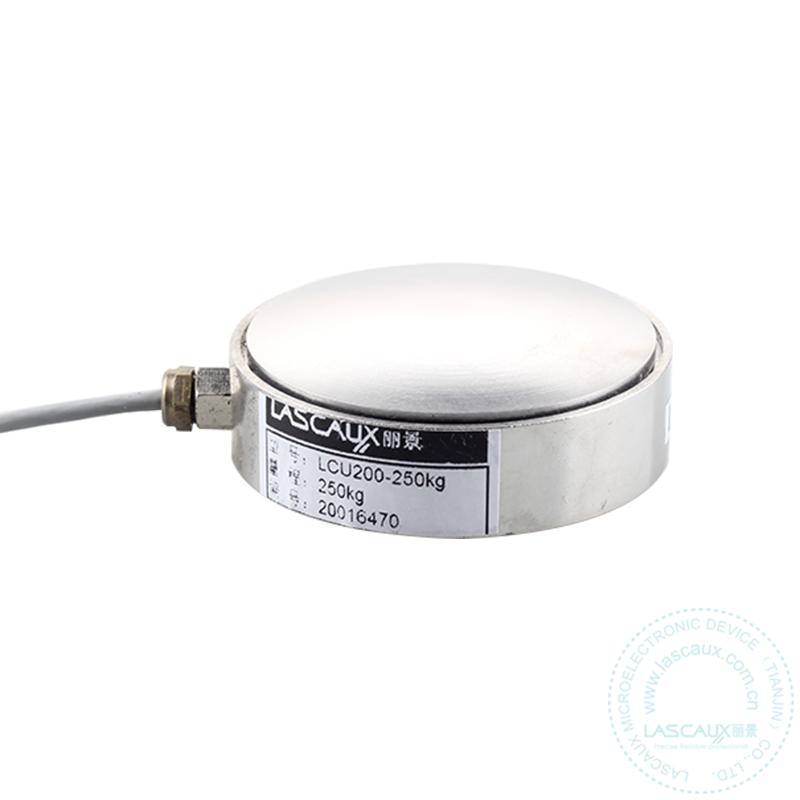

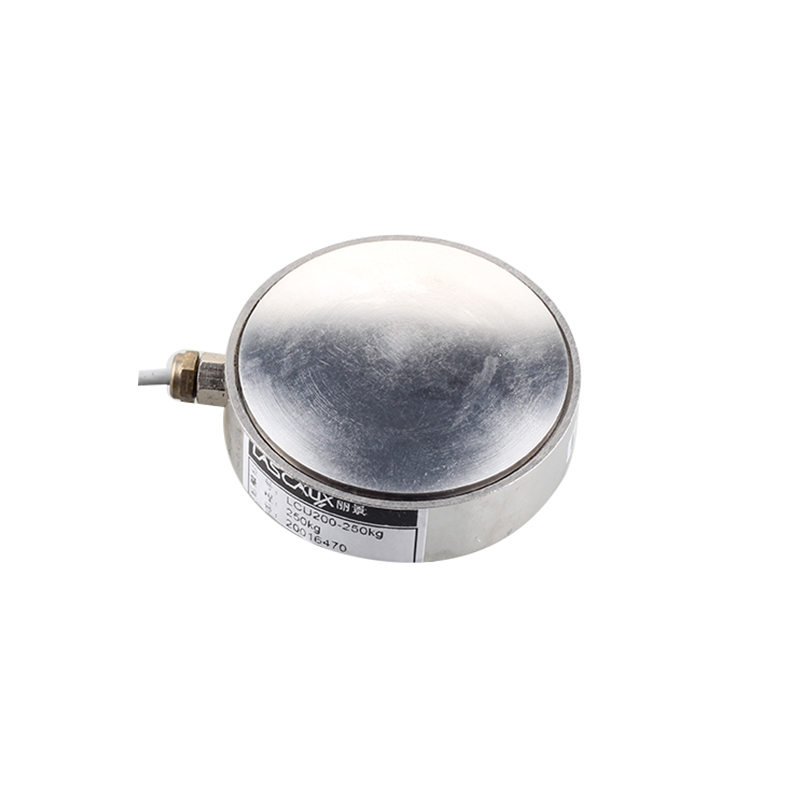

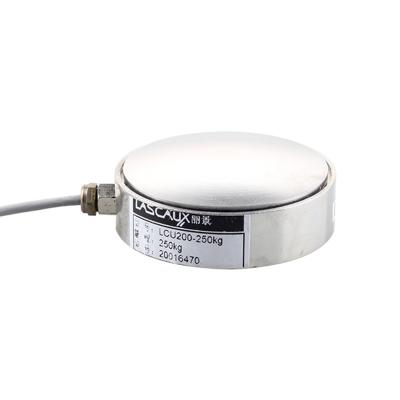

LCU200 Force Transduscer

Be suitable for monitoring the force of vehicle pedal

本店价：

👈Consult customer service for a quote 0 have been sold|0 evaluation

Capacity

150kg

250kg

Micro Force Transducers

Description:

Model: LCU200

Data sheet

Features:

1. Capacities (kg): 150kg, 250kg

2. Force Transducer

3. Compact structure, easy mounting

4. Delicate structure, low profile

5. Alloy steel, nickel plating

6. High comprehensive precision, high stability

7. Compression sensor

Applications:

Be suitable for monitoring the force of vehicle pedal

Specifications:

Rated Load	kg	150,250
Rated Output	mV/V	1.0
Zero Balance	%R.O.	±1
Comprehensive Error	%R.O.	±0.2
Creep/30 minutes	%R.O.	±0.1
Repeatability	%R.O.	±0.1
Non-linearity	%R.O.	±0.2
Repeatability	%R.O.	±0.3
Hysteresis	%R.O.	±0.2
Compensated Temp. Range	‌℃	-10~+40
Operating Temp. Range	℃	-20~+70
Temp. effect/10℃ on output	%R.O./10 ℃	±0.1
Temp. effect/10℃ on zero	%R.O./10 ℃	±0.1
Recommended Excitation Voltage	VDC	5-12
Input impedance	Ω	700±5
Output impedance	Ω	700±5
Insulation resistance	MΩ	≥5000（50VDC）
Safe Overload	%R.C.	150
Ultimate Overload	%R.C.	200
Material		Alloy Steel
Degree of protection		IP65
The length of the cable	m	1m

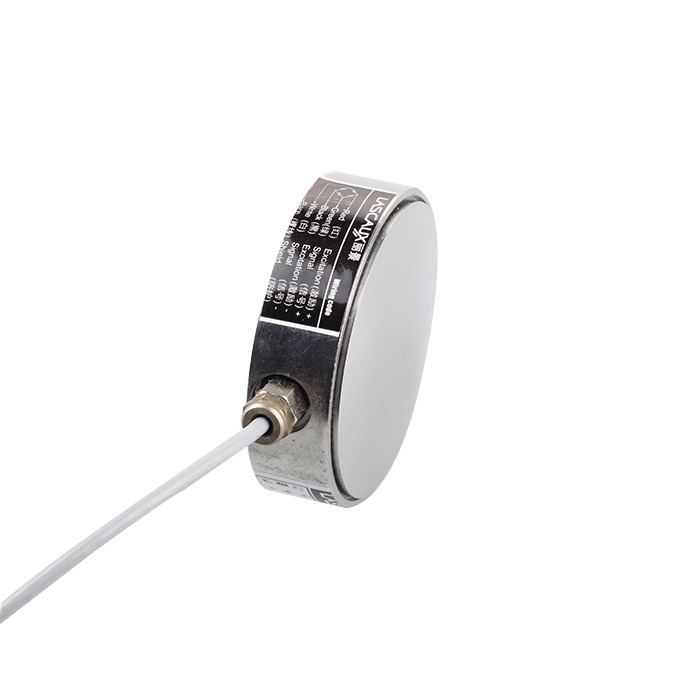

Wiring code	Ex:	Red：＋ Black：–
Wiring code	Sig:	Green：＋ White：–

Product name :	LCU200 Force Transduscer
Product brand :	LIBIRINTH
Rated Load:	150kg，250kg
Rated Output:	1.0mV/V
Comprehensive Error:	0.2%R.O.
The lengh of the cable:	1m
Input Impedance:	700±5Ω
Output Impedance:	700±5Ω
Recommended Excitation Voltage:	5-12v
